Trunk lid/closing system for BMW 3 Series E30 318i (1991)

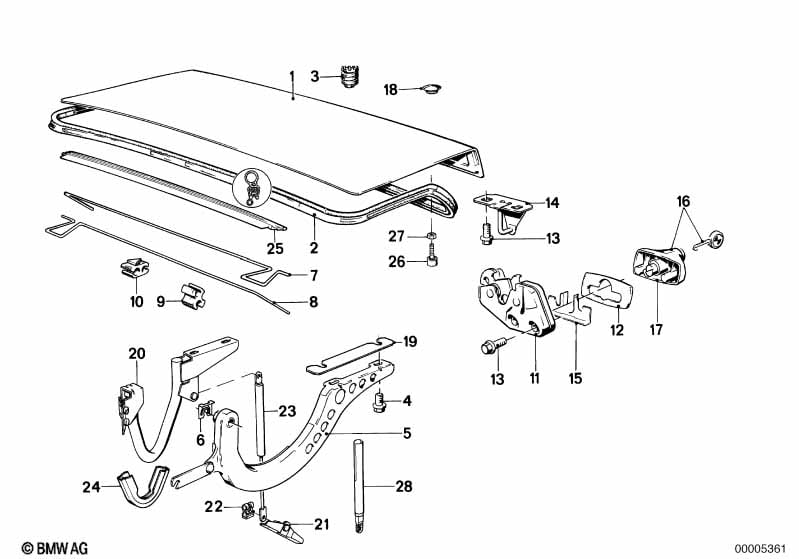

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41621959609 | $476.85 | Shop at ECS Tuning | |||||
| 02 | Trunk lid gasket | 1 | 51711884149 | $49.69 | Shop at ECS Tuning | |||||
| 03 | Stop buffer | 2 | 51241933395 | $2.31 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X16-Z3-2 | 4 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Hinge left | 1 | 41621911261 | $26.83 | Shop at ECS Tuning | |||||
| 05 | Hinge right | 1 | 41621911262 | $26.83 | Shop at ECS Tuning | |||||
| 06 | Circlip | 2 | 08/1984 | 41621924962 | $0.84 | Shop at ECS Tuning | ||||
| 07 | Torsion spring left | 1 | 41621937495 | $11.73 | Shop at ECS Tuning | |||||
| For vehicles with M technic rear spoiler |
=Yes |
|||||||||
| 07 | Torsion spring left | 1 | 01/1988 | 41622238835 | $11.48 | Shop at ECS Tuning | ||||
| For vehicles with Rear spoiler |
=Yes |
|||||||||
| 07 | Torsion spring left | 1 | 41621937497 | $11.48 | Shop at ECS Tuning | |||||
| 08 | Torsion spring right | 1 | 41621937496 | $11.73 | Shop at ECS Tuning | |||||
| 08 | Torsion spring right | 1 | 41621936546 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with M technic rear spoiler |
=Yes |
|||||||||
| 08 | Torsion spring right | 1 | 01/1988 | 41622238836 | $11.73 | Shop at ECS Tuning | ||||
| For vehicles with Rear spoiler |
=Yes |
|||||||||
| 08 | Torsion spring right | 1 | 41621937498 | $11.48 | ENDED | Shop at ECS Tuning | ||||
| 09 | Suspension | 1 | 41625676221 | $2.59 | ENDED | Shop at ECS Tuning | ||||
| 10 | Suspension | 2 | 51241815364 | $0.90 | Shop at ECS Tuning | |||||
| 11 | Lock | 1 | 51241884131 | $37.16 | Shop at ECS Tuning | |||||
| 12 | Gasket | 1 | 51241884147 | $0.84 | Shop at ECS Tuning | |||||
| 12 | Gasket | 1 | 51241884152 | $3.54 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Cover, registration plate | X | 51131888450 | $41.61 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X16-SB-Z3-2 | 5 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X20-SB-Z3-1 | 5 | 07119915121 | $0.30 | Shop at ECS Tuning | ||||
| 14 | Catch bracket | 1 | 51241916204 | $19.47 | Shop at ECS Tuning | |||||
| 15 | Base | 1 | 51241916535 | ENDED | Shop at ECS Tuning | |||||
| 16 | Trunk lid lock with key | 1 | 51241904514 | $61.43 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 16 | Trunk lid lock with key | 1 | 51241911948 | $93.59 | Shop at ECS Tuning | |||||
| 17 | Trunk lid lock with code | 1 | 51241904920 | $103.96 | Shop at ECS Tuning | |||||
| 17 | Rep.kit f lock cylinder | 1 | 51249061876 | $64.80 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 17 | Trunk lid lock with code | 1 | 51241911947 | $80.82 | Shop at ECS Tuning | |||||
| 17 | Rep.kit f lock cylinder | 1 | 51249061785 | $64.80 | Shop at ECS Tuning | |||||
| 18 | Blind plug | D=11MM | 2 | 51141823900 | $1.18 | Shop at ECS Tuning | ||||
| 19 | Base | D=1MM | X | 41621922498 | $1.02 | Shop at ECS Tuning | ||||
