Rear spoiler single parts for BMW 3 Series E30 318i (1987)

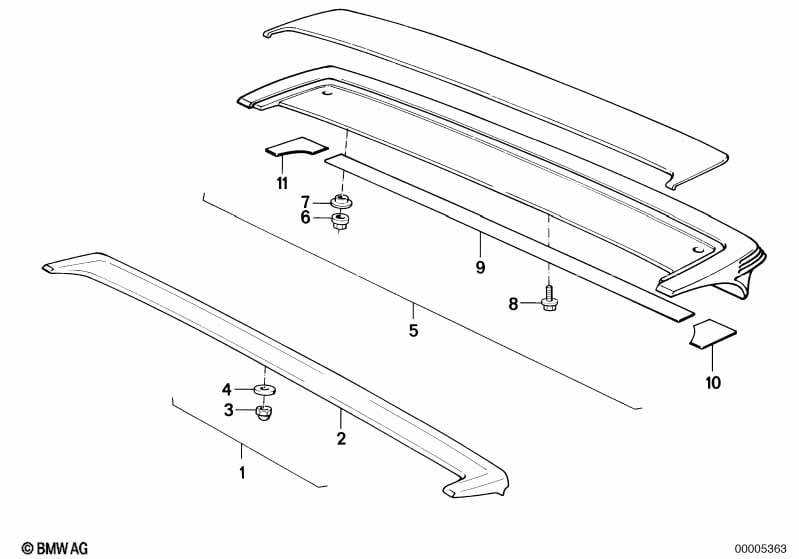

This Rear spoiler single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set rear spoiler | SCHWARZ | 1 | 51711945710 | $203.52 | ENDED, ABE 9780847, ABE 9786247 | Shop at ECS Tuning | |||
| 01 | Installing set rear spoiler prime coated | 1 | 51711967950 | $251.52 | ABE 9780847, ABE 9786247 | Shop at ECS Tuning | ||||
| 03 | Plastic nut for coarse threaded pin | M6 | 6 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Cap nut | M5 | 6 | 51185480150 | $0.32 | ENDED | Shop at ECS Tuning | |||
| 03 | Cap nut | M5 | 6 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Washer-gasket | 6 | 51711916637 | $0.32 | Shop at ECS Tuning | |||||
| 05 | Installing set rear spoiler | M TECHNIC | 1 | 51719057958 | $557.27 | ENDED, ABE 9780284, ABE 9786677 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Torsion spring left | 1 | 41621937497 | $11.48 | Shop at ECS Tuning | |||||
| -- | Torsion spring right | 1 | 41621937498 | $11.48 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cap nut | M5 | 6 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Washer-gasket | 6 | 51711916637 | $0.32 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M5X10 | 3 | 07119904442 | $0.80 | Shop at ECS Tuning | ||||
| 09 | Adhesive tape | 1200MM | X | 51711922087 | $13.14 | ENDED | Shop at ECS Tuning | |||
| 10 | Foil left | M TECHNIC | 1 | 51711922245 | $3.32 | Shop at ECS Tuning | ||||
| 11 | Foil right | M TECHNIC | 1 | 51711922246 | $3.32 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
