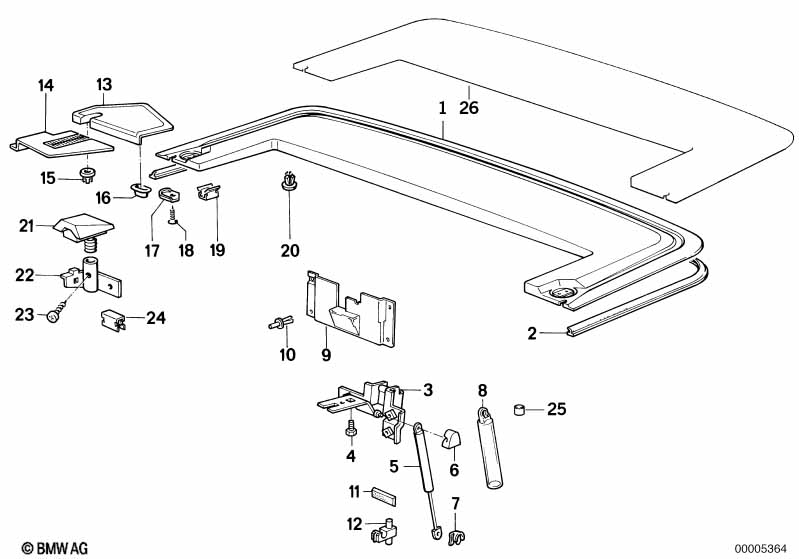

Folding top compartment lid for BMW 3 Series E30 320i (1992)
This Folding top compartment lid technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Folding top compartment lid | UNBEZOGEN | 1 | 41631935699 | $296.28 | Shop at ECS Tuning | ||||
| 01 | Folding top compartment lid | PERLBEIGE | 1 | 51171945204 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and EM Folding top |
L807A=Yes =Yes |
|||||||||
| 01 | Folding top compartment lid | UNBEZOGEN | 1 | 41638121942 | $358.24 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | sealing | 1 | 51712230857 | $103.66 | Shop at ECS Tuning | |||||
| 03 | Left folding top flap hinge | 1 | 41631935697 | $90.12 | Shop at ECS Tuning | |||||
| 03 | Right folding top flap hinge | 1 | 41631935698 | $90.12 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and EH Folding top |
L807A=Yes =Yes |
|||||||||
| 03 | Left folding top flap hinge | 1 | 54342232183 | $114.72 | Shop at ECS Tuning | |||||
| 03 | Right folding top flap hinge | 1 | 54342232184 | $114.72 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Hex bolt with washer | M6X16-Z3-2 | 7 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X16-SB-Z3-2 | 7 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X20-SB-Z3-1 | 7 | 07119915121 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Gas pressurized spring | 180N | 2 | 51251932333 | $82.30 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering cap | 2 | 51241945420 | $0.34 | ENDED | Shop at ECS Tuning | ||||
| 07 | Circlip | 3,2 | 6 | 07119932815 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Covering left | 1 | 51241925527 | $7.02 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 09 | Covering right | 1 | 51241925528 | $7.02 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Expanding rivet | 8 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 10 | Expanding rivet | 8 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 11 | Stop buffer | 2 | 51251937009 | $1.28 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and EH Folding top |
L807A=Yes =Yes |
|||||||||
| 11 | Stop buffer | 2 | 51252238237 | $1.92 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 12 | Holder | X | 51251936900 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cap left | 1 | 51131932869 | $15.50 | Shop at ECS Tuning | |||||
| 13 | Cap right | 1 | 51131932870 | $15.50 | ENDED | Shop at ECS Tuning | ||||
| 14 | Covering left | 1 | 51431945355 | $18.14 | Shop at ECS Tuning | |||||
| 14 | Covering right | 1 | 51431945356 | $19.19 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and EH Folding top |
L807A=Yes =Yes |
|||||||||
| 14 | Covering left | 1 | 04/1989 | 51431945355 | $18.14 | Shop at ECS Tuning | ||||
| 14 | Covering right | 1 | 04/1989 | 51431945356 | $19.19 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 15 | Grommet | 2 | 51141849885 | $1.38 | ENDED | Shop at ECS Tuning | ||||
| 16 | Insert | 10X7 | 6 | 51131870459 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Support | 2 | 51131962449 | ENDED | Shop at ECS Tuning | |||||
| 17 | Bracket left | 1 | 51251972993 | $4.23 | Shop at ECS Tuning | |||||
| 17 | Bracket right | 1 | 51251972994 | $4.23 | Shop at ECS Tuning | |||||
| 18 | Fillister head self-tapping screw | ST3,5X6,5 | X | 07119907774 | $0.09 | Shop at ECS Tuning | ||||
| 19 | Clamp | 2 | 51431945180 | $0.75 | Shop at ECS Tuning | |||||
| 19 | Clamp | 2 | 51431945578 | $0.35 | ENDED | Shop at ECS Tuning | ||||
| 20 | Expanding rivet | SCHWARZ | X | 51131966440 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Expanding rivet | WEISS | X | 51131966645 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 21 | Covering left | 1 | 51431942787 | $18.14 | Shop at ECS Tuning | |||||
| 21 | Covering right | 1 | 51431942788 | $18.14 | Shop at ECS Tuning | |||||
| 22 | Fixing clamp left | 1 | 54311955169 | $2.12 | Shop at ECS Tuning | |||||
| 22 | Fixing clamp right | 1 | 54311955170 | $2.12 | Shop at ECS Tuning | |||||
| 23 | Fillister head self-tapping screw | ST2,9X13 | 2 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||

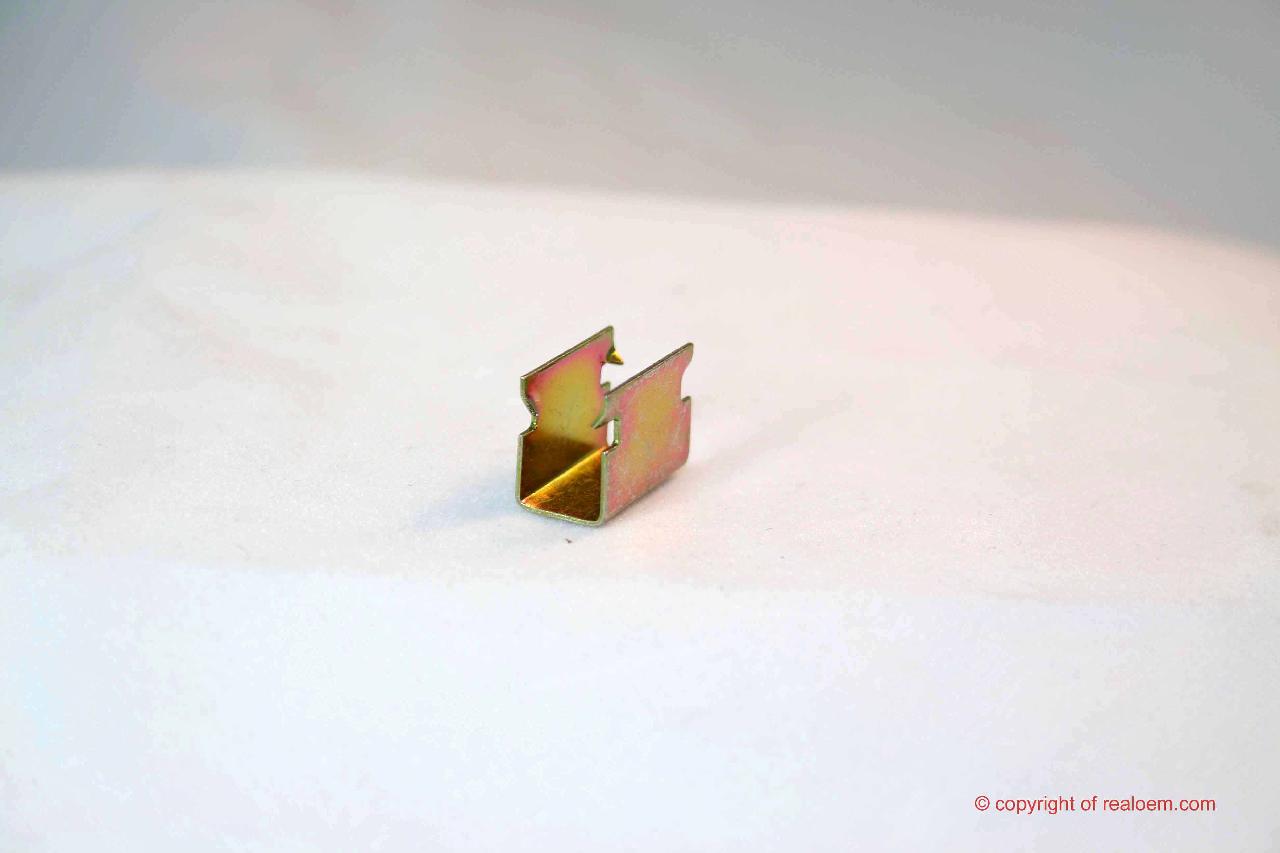

| 24 | Clamp | 2 | 61131925120 | $0.32 | Shop at ECS Tuning | |||||
| 25 | Cap | D=09 | 2 | 51178129291 | $0.59 | Shop at ECS Tuning | ||||
| 26 | Vinyl cover f folding top flap | SCHWARZ | 1 | 51171942679 | $311.02 | ENDED | Shop at ECS Tuning | |||
| 26 | Vinyl cover f folding top flap | PERLBEIGE | 1 | 51171942680 | $293.61 | ENDED | Shop at ECS Tuning | |||
| 26 | Vinyl cover f folding top flap | CARDINALROT | 1 | 51171961460 | ENDED | Shop at ECS Tuning | ||||
| 26 | Vinyl cover f folding top flap | LOTOSWEISS | 1 | 51172132209 | $293.61 | ENDED | Shop at ECS Tuning | |||
| 26 | Vinyl cover f folding top flap | SILBER | 1 | 51172230807 | $229.90 | ENDED | Shop at ECS Tuning | |||
| 26 | Vinyl cover f folding top flap | NATUR | 1 | 51178100600 | $229.90 | ENDED | Shop at ECS Tuning | |||
| 26 | Vinyl cover f folding top flap | INDIGO | 1 | 51178100601 | $293.61 | ENDED | Shop at ECS Tuning | |||
| 26 | Vinyl cover f folding top flap | KARMESINROT | 1 | 51178112200 | $229.90 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
