Trunk lid/closing system for BMW 7 Series E32 730i (1994)

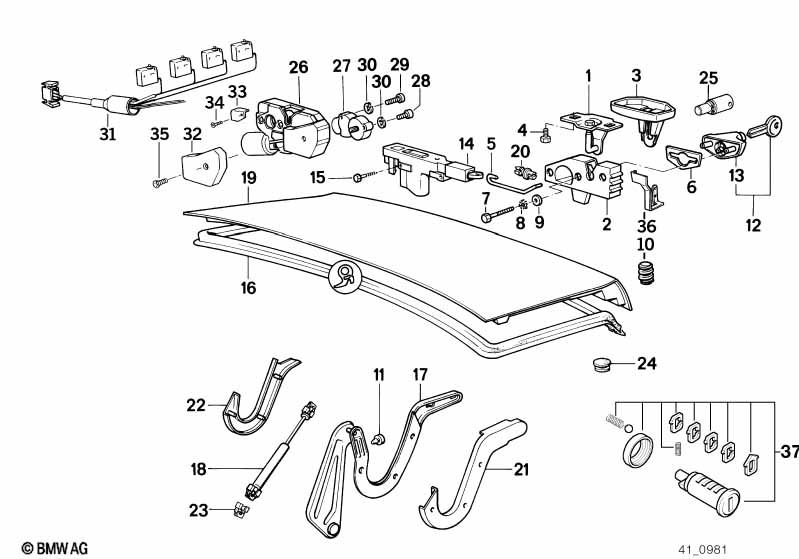

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catch bracket | 1 | 51241916204 | $19.47 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO SERVO CATCH | ||||||||||
| 01 | Catch bracket | 1 | 51241916204 | $19.47 | Shop at ECS Tuning | |||||
| 02 | Lock | 1 | 06/1987 | 51241957996 | $34.05 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | 1 | 51241936218 | $1.98 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X16-SB-Z3-2 | 2 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Connection rod | 1 | 51241938733 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 51241928368 | $1.03 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X35-8.8-ZNS3 | 3 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Spring washer Black | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6-ZNS3 | 3 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 09 | Washer | A6,4-ZNNIV SI | 3 | 07119904202 | Shop at ECS Tuning | |||||
| 10 | Buffer stop with ejector | 23N | 2 | 09/1993 | 51248137994 | $7.16 | Shop at ECS Tuning | |||
| 11 | Stop buffer | 2 | 51241938465 | $1.34 | ENDED | Shop at ECS Tuning | ||||
| 12 | Catch with key | 1 | 06/1987 | 51241957991 | $74.72 | Shop at ECS Tuning | ||||
| 13 | Catch with code | 1 | 06/1987 | 51241957992 | $87.58 | Shop at ECS Tuning | ||||
| 14 | Actuator f trunk lid | STECKER 5 POLIG | 1 | 51268350181 | $126.97 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | L=16MM | 2 | 51261375979 | $0.41 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | L=12MM | 2 | 51261377144 | $0.39 | Shop at ECS Tuning | ||||
| 16 | Trunk lid gasket | 1 | 51711908443 | $69.71 | Shop at ECS Tuning | |||||
| 17 | Left trunk lid hinge | 1 | 41621928569 | $52.04 | ENDED | Shop at ECS Tuning | ||||
| 17 | Right trunk lid hinge | 1 | 41621928570 | $52.04 | ENDED | Shop at ECS Tuning | ||||
| 18 | Gas pressurized spring | 490N | 2 | 51241908431 | $46.02 | Shop at ECS Tuning | ||||
| 19 | Trunk lid | 1 | 41621948045 | $726.96 | Shop at ECS Tuning | |||||
| 20 | Circlip | 1 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 21 | Cover panel outer left | 1 | 51491954071 | $5.32 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cover panel outer right | 1 | 51491954072 | $5.32 | Shop at ECS Tuning | |||||
| 22 | Covering inner left | 1 | 51491954073 | $4.57 | ENDED | Shop at ECS Tuning | ||||
| 22 | Covering inner right | 1 | 51491954074 | $4.57 | Shop at ECS Tuning | |||||
| 23 | Securing plate | 4 | 51231908430 | $1.72 | Shop at ECS Tuning | |||||
| 24 | Blind plug | D=6MM | 2 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 25 | Connection piece | 1 | 06/1987 | 51241957993 | $10.28 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SERVO CATCH | ||||||||||
| 26 | Servo lock | 1 | 51248111912 | $97.10 | ENDED | Shop at ECS Tuning | ||||
| 27 | Drive | 1 | 51241390550 | $139.50 | ENDED | Shop at ECS Tuning | ||||
| 28 | Fillister head screw | M4X25 | 1 | 07119907685 | $1.18 | Shop at ECS Tuning | ||||
| 29 | Oval-head screw black | M4X30-4.8-H-ZN | 2 | 07119907591 | $0.40 | Shop at ECS Tuning | ||||
| 30 | Spring washer | B4 | 3 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 31 | Wiring set | 1 | 51241390552 | $160.07 | ENDED | Shop at ECS Tuning | ||||
| 32 | Covering Lower | 1 | 51248127008 | $4.02 | ENDED | Shop at ECS Tuning | ||||
| 33 | Cover | 1 | 51248127007 | $2.05 | ENDED | Shop at ECS Tuning | ||||
| 34 | Screw | P-TS3X6-ZN | 1 | 07129925822 | ENDED | Shop at ECS Tuning | ||||
| 35 | Countersunk head screw | M3X8 | 1 | 51248113228 | $0.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Alarm systems |
=Yes |
|||||||||
| 36 | Spring contact | 1 | 61311388390 | $3.78 | Shop at ECS Tuning | |||||
| 37 | Rep.kit f lock cylinder | 1 | 51249061540 | $57.54 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
