Front side panel for BMW 3 Series E36 M3 (1994)

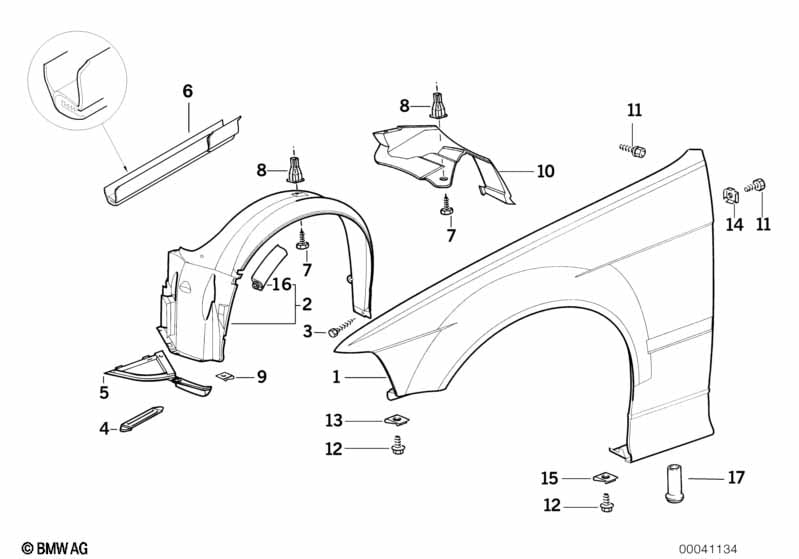

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO LATERAL TURN INDICATOR | ||||||||||
| 01 | Side panel, front left | 1 | 09/1996 | 41358215289 | $300.77 | Shop at ECS Tuning | ||||
| 01 | Side panel, front right | 1 | 09/1996 | 41358215290 | $300.77 | Shop at ECS Tuning | ||||
| 02 | Wheelarch trim | LI/LH | 1 | 51711977047 | $43.25 | Shop at ECS Tuning | ||||
| 02 | Wheelarch trim | RE/RH | 1 | 51711977048 | $43.25 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST4,8-11-ZN | 2 | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Support left | 1 | 51711977117 | $7.77 | Shop at ECS Tuning | |||||
| 05 | Support right | 1 | 51711977118 | $7.77 | Shop at ECS Tuning | |||||
| 06 | Edge protection left | 1 | 51718216079 | $13.85 | ENDED | Shop at ECS Tuning | ||||
| 06 | Edge protection right | 1 | 51718216080 | $13.85 | Shop at ECS Tuning | |||||
| 07 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Body nut | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Torx bolt | ISA ST6,3X14 | 8 | 41009163211 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 8 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST4,8MM | X | 51437001566 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Prestol-cage | ST6,3-ZNS | 4 | 07129901748 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 14 | Body nut | ST 6,3 - 9 | 4 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 16 | sealing | 2 | 51718119766 | $24.40 | Shop at ECS Tuning | |||||
| 17 | Rubber grommet | D=40MM | 1 | 16132227259 | $15.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
