Side panel/tail trim for BMW 3 Series E36 325tds (1998)

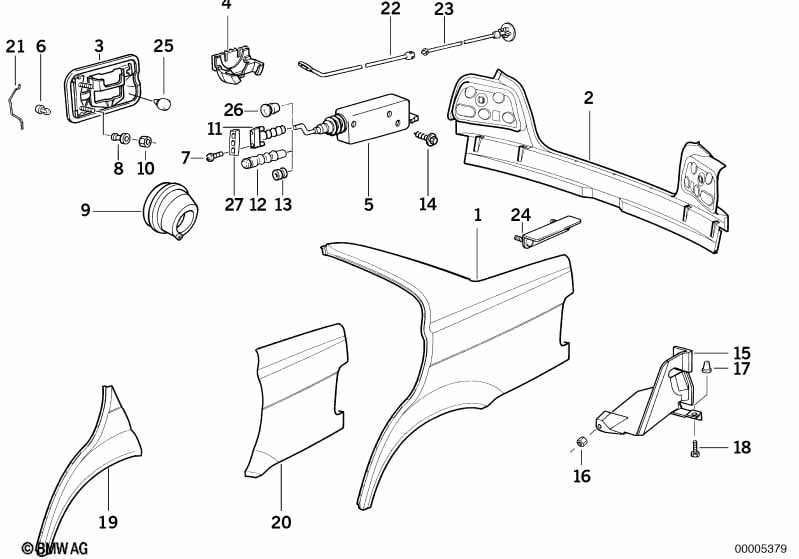

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41351977941 | $330.63 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right rear side panel | 1 | 41351977942 | $330.63 | ENDED | Shop at ECS Tuning | ||||
| 02 | Tail trim | 1 | 41348119190 | $188.24 | Shop at ECS Tuning | |||||
| 03 | Fill-in flap | 1 | 51171960024 | $28.08 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 04 | Support filler cap | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 05 | Filler flap actuator | 1 | 67116987627 | $57.47 | Shop at ECS Tuning | |||||
| 06 | Stop buffer | 1 MM | 1 | 51178156239 | $0.32 | Shop at ECS Tuning | ||||
| 08 | Spacer sleeve | 2 | 51171888394 | $1.82 | Shop at ECS Tuning | |||||
| 09 | Rubber cover | 1 | 51711977597 | $12.00 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Rubber boot | 1 | 03/1992 | 51258151799 | $3.77 | Shop at ECS Tuning | ||||
| 13 | Sleeve | 1 | 03/1992 | 51258151536 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Torx-bolt for plastic material | L=10MM | 1 | 51268354462 | $0.39 | Shop at ECS Tuning | ||||
| 15 | Trim panel left | 1 | 51718130071 | $4.80 | Shop at ECS Tuning | |||||
| 15 | Trim panel right | 1 | 51718130072 | $4.80 | Shop at ECS Tuning | |||||
| 16 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 17 | Expanding nut | TS 4,2 - TS 4,8 | 2 | 51718242741 | $0.32 | Shop at ECS Tuning | ||||
| 18 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Section of rear left fender | 1 | 41351977525 | $95.91 | Shop at ECS Tuning | |||||
| 19 | Section of rear right fender | 1 | 41351977526 | $95.91 | Shop at ECS Tuning | |||||
| 20 | Section of rear left fender | 1 | 41351977527 | $164.66 | Shop at ECS Tuning | |||||
| 20 | Section of rear right fender | 1 | 41351977528 | $164.66 | Shop at ECS Tuning | |||||
| 21 | Spring | 1 | 51171888374 | $0.38 | Shop at ECS Tuning | |||||
| 22 | Pulling strip f emergency mechanism | 1 | 51258132168 | $0.97 | Shop at ECS Tuning | |||||
| 23 | Emergency mechanism | 1 | 51258132166 | $0.93 | Shop at ECS Tuning | |||||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 24 | Bracket CD-changer | 1 | 41148134049 | $7.98 | Shop at ECS Tuning | |||||
| 25 | Stop buffer | 1 | 51178153364 | $0.32 | Shop at ECS Tuning | |||||
