Trunk lid/closing system for BMW 3 Series E36 328i (1998)

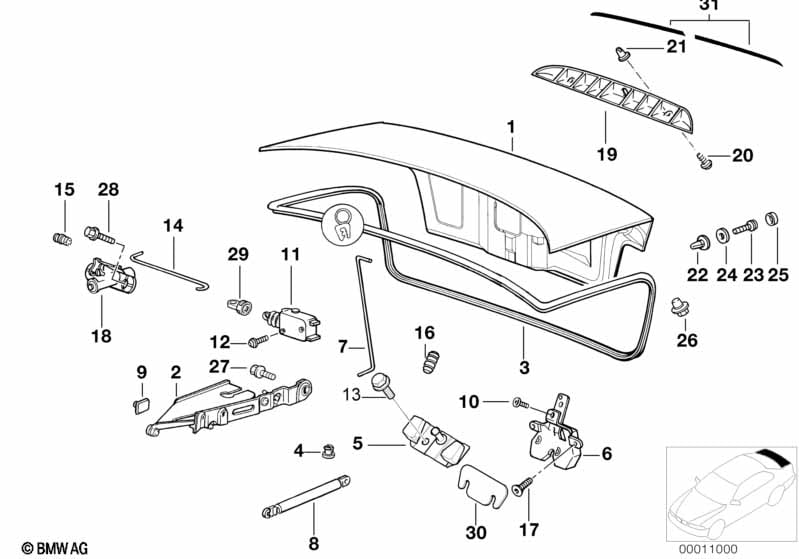

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | ECE | 1 | 41628119706 | $520.73 | Shop at ECS Tuning | ||||
| 02 | Left trunk lid hinge | 1 | 41628119163 | $43.61 | Shop at ECS Tuning | |||||
| 02 | Right trunk lid hinge | 1 | 41628119164 | $43.61 | Shop at ECS Tuning | |||||
| 03 | Trunk lid gasket | 1 | 51711977050 | $45.76 | Shop at ECS Tuning | |||||
| 04 | Stop buffer | 2 | 51248119306 | $2.25 | Shop at ECS Tuning | |||||
| 05 | Catch bracket | 1 | 51241960859 | $15.47 | Shop at ECS Tuning | |||||
| 06 | Trunk lid lock | 1 | 51241960861 | $33.08 | Shop at ECS Tuning | |||||
| 07 | Connection rod | 1 | 51248151001 | $3.52 | Shop at ECS Tuning | |||||
| 08 | Gas pressurized spring | 480N | 2 | 51241960862 | $42.77 | Shop at ECS Tuning | ||||
| 09 | Bump stop | 2 | 51238123298 | $3.24 | Shop at ECS Tuning | |||||
| 10 | Torx-bolt with washer | M6X12 | 1 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Actuator f trunk lid | 1 | 09/1994 | 67118361140 | Shop at ECS Tuning | |||||
| 12 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Operating rod | 1 | 51248119838 | $4.33 | Shop at ECS Tuning | |||||
| 15 | Circlip | 1 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 16 | Buffer stop with ejector | 34N | 2 | 09/1993 | 51248187291 | $7.16 | Shop at ECS Tuning | |||
| 17 | Torx-countersunk head screw | ISA M6X13 | 2 | 07147202357 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 18 | Catch with key | 1 | 51248122346 | $75.68 | Shop at ECS Tuning | |||||
| 18 | Catch with code | 1 | 51248122347 | $90.60 | Shop at ECS Tuning | |||||
| 19 | Trunk lid grip | 1 | 51131977253 | $25.23 | Shop at ECS Tuning | |||||
| 19 | Painted trunk lid grip | CODE - UNI | 1 | 51139066377 | $174.10 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 19 | Painted trunk lid grip | CODE - MET. | 1 | 51139066378 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 20 | Phillips screw f plastic material | TS 4X10 | 4 | 51131960840 | $0.39 | Shop at ECS Tuning | ||||
| 21 | Expanding nut | 4 | 09/1992 | 51161943152 | $0.50 | Shop at ECS Tuning | ||||
| 22 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 23 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 24 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 25 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 25 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 25 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 26 | Stop buffer | D=8MM/24MM | 2 | 51248138663 | $0.47 | Shop at ECS Tuning | ||||
| 27 | Hex bolt with washer | M6X16-Z2 | 4 | 09/1999 | 07119900574 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 28 | Hex bolt with washer | M6X20-Z3 | 2 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 29 | Connection piece | VDO | 1 | 67118361868 | $0.73 | SI 511093743 | Shop at ECS Tuning | |||
| 29 | Connection piece | KIEKERT | 1 | 67118361869 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
