Rear door - hinge/door brake for BMW 3 Series E36 318i (1999)

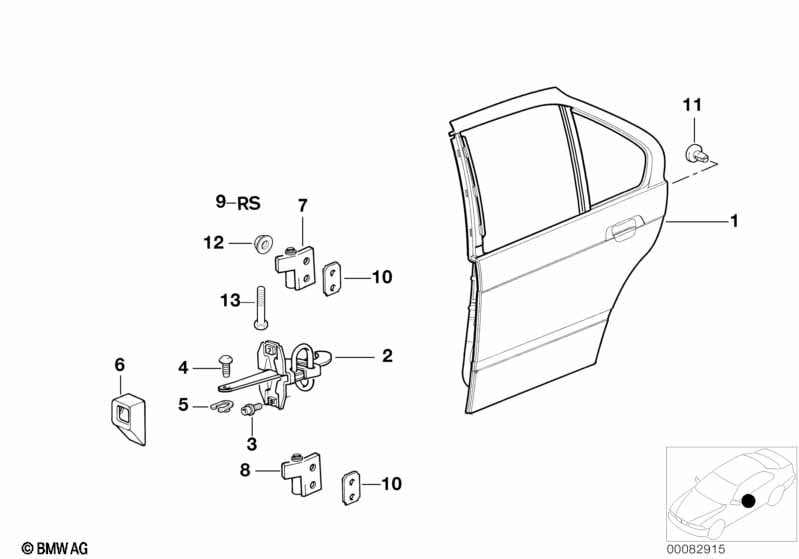

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41528185427 | $586.71 | Shop at ECS Tuning | |||||
| 01 | Door rear right | 1 | 41528185428 | $586.71 | Shop at ECS Tuning | |||||
| 02 | Rear door brake | 2 | 51228165009 | $36.05 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X14 | 4 | 51218132858 | $0.56 | Shop at ECS Tuning | ||||
| 04 | Pin | 2 | 51218141116 | $1.10 | Shop at ECS Tuning | |||||
| 05 | Securing plate | 2 | 51211948157 | $0.48 | Shop at ECS Tuning | |||||
| 06 | Door brake gasket | 2 | 51218122579 | $7.46 | Shop at ECS Tuning | |||||
| 07 | Left upper rear door hinge | 1 | 41528135509 | $35.79 | Shop at ECS Tuning | |||||
| 07 | Right upper rear door hinge | 1 | 41528135510 | $35.79 | Shop at ECS Tuning | |||||
| 08 | Left lower rear door hinge | 1 | 41528135507 | $35.79 | Shop at ECS Tuning | |||||
| 08 | Right lower rear door hinge | 1 | 41528135508 | $35.79 | Shop at ECS Tuning | |||||
| 09 | Repair kit for door hinge | X | 41511960998 | $9.84 | Shop at ECS Tuning | |||||
| CONSISTING OF PIN BUSH FLAT WASHER CIRCLIP HEX BOLT WITH WASHER |
||||||||||
| 10 | Shim | 1,0MM | 1 | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 10 | Shim | 0,5MM | 1 | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 11 | Spacer | 2 | 61311387263 | $0.17 | Shop at ECS Tuning | |||||
| 12 | Hex nut | M8-8-ZNS3 | 8 | 03/1999 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 12 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M6X22-8.8-MK | 4 | 07119906263 | $0.36 | Shop at ECS Tuning | ||||
