Partition trunk for BMW 3 Series E36 318is (1998)

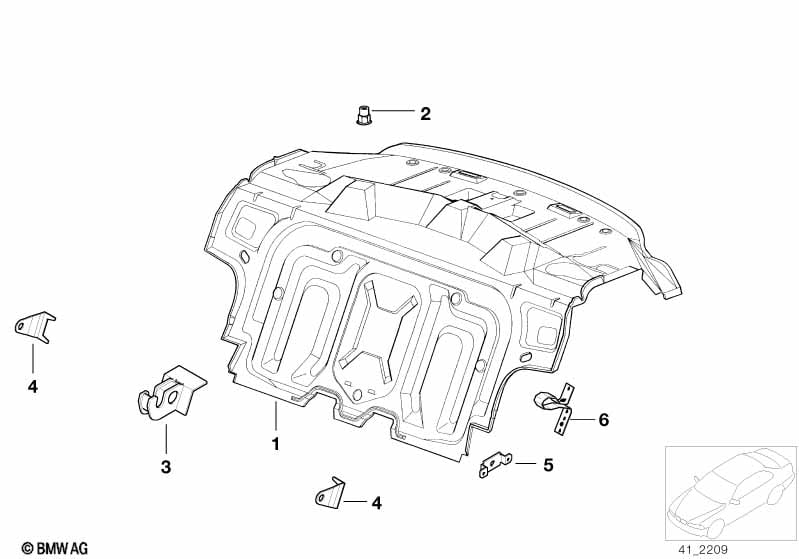

This Partition trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Partition trunk | 1 | 41138122356 | $621.97 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 02 | Blind rivet nut, countersunk head | M6 | 3 | 52201975880 | $0.77 | Shop at ECS Tuning | ||||
| 03 | Centre backrest bearing bracket | 1 | 41128232115 | $30.47 | Shop at ECS Tuning | |||||
| 04 | Lateral backrest bearing bracket | 2 | 41128232108 | $2.38 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support f lateral upholstery | 2 | 41148232112 | $3.24 | Shop at ECS Tuning | |||||
| 06 | Support f lateral upholstery | 2 | 41138234658 | $2.98 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Partition trunk?
- This technical diagram illustrates the Partition trunk within the Bodywork group for the 3 Series E36 318is produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Partition trunk (Part #41138122356).
- Which models use the hardware listed in this Partition trunk?
- The hardware and components featured in the Partition trunk are specific to the 3 Series E36 318is produced during 1998. These technical specifications ensure that parts like the Partition trunk (41138122356) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Partition trunk assembly?
- Each item in the Partition trunk corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Partition trunk by locating its position on the schematic, which then links to the official BMW part number 41138122356 for the Bodywork section.
