Side panel/tail trim for BMW 5 Series E34 525tds (1995)

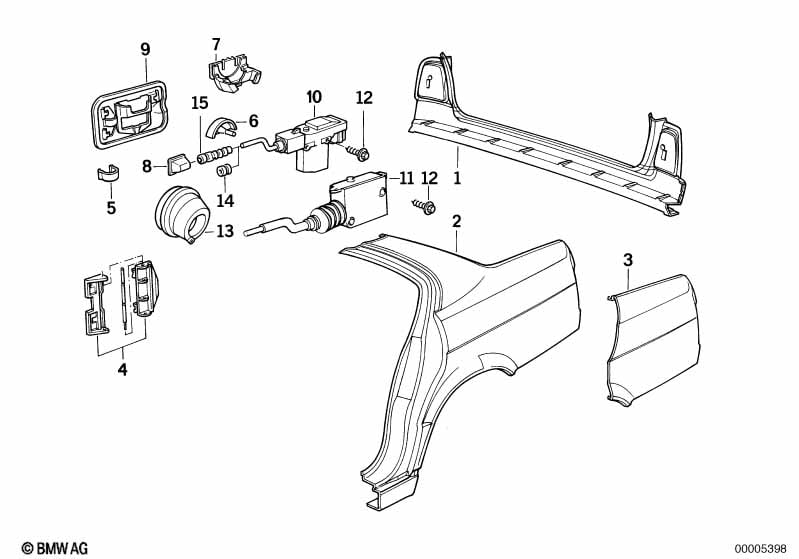

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail panel | 1 | 41341973698 | $209.35 | Shop at ECS Tuning | |||||
| 02 | Left rear side panel | ECE | 1 | 41008110943 | $384.60 | Shop at ECS Tuning | ||||
| 02 | Right rear side panel | ECE | 1 | 41008110944 | $384.60 | Shop at ECS Tuning | ||||
| 03 | Section of rear left fender | 1 | 41008110945 | $199.76 | Shop at ECS Tuning | |||||
| 03 | Section of rear right fender | 1 | 41008110946 | $199.76 | Shop at ECS Tuning | |||||
| 04 | Hinge | 1 | 51171928197 | $12.69 | Shop at ECS Tuning | |||||
| 05 | Spring | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 06 | Stop buffer | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 07 | Support filler cap | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 08 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 09 | Fill-in flap | 1 | 51171928317 | $38.57 | Shop at ECS Tuning | |||||
| 11 | Actuator | 1 | 09/1991 | 67116987626 | $57.47 | ENDED | Shop at ECS Tuning | |||
| 12 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 09/1991 | 07149113701 | $0.38 | Shop at ECS Tuning | |||
| 13 | Rubber cover | 1 | 51711928172 | $8.68 | Shop at ECS Tuning | |||||
| 14 | Sleeve | 1 | 51258116266 | $1.10 | Shop at ECS Tuning | |||||
| 15 | Rubber boot | 1 | 51251957173 | $5.13 | Shop at ECS Tuning |
