Closing system, door, rear for BMW 5 Series E34 525tds (1996)

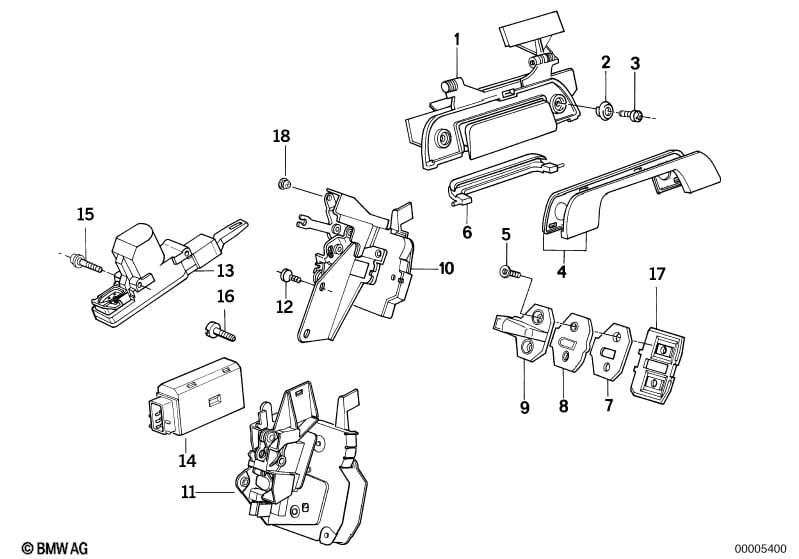

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door handle outer left | 1 | 51228138951 | $60.74 | Shop at ECS Tuning | |||||
| 01 | Door handle outer right | 1 | 51228138952 | $60.74 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket | 4 | 51211908758 | $0.21 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | M5X12 | 4 | 51218105499 | $1.34 | Shop at ECS Tuning | ||||
| 04 | Covering rear | 2 | 51228119076 | $15.67 | Shop at ECS Tuning | |||||
| 05 | Torx-countersunk head screw | M8X18 | 4 | 51211928850 | $0.52 | Shop at ECS Tuning | ||||
| 06 | Base | 2 | 51211977669 | $3.98 | Shop at ECS Tuning | |||||
| 07 | Striker plate gasket | 2 | 51218127140 | $2.50 | SI 510691373 | Shop at ECS Tuning | ||||
| 09 | Latch Striker | 2 | 09/1991 | 51218105511 | $44.32 | SI 510691373 | Shop at ECS Tuning | |||
| 11 | Door lock rear left | 1 | 51228138927 | $141.99 | ENDED | Shop at ECS Tuning | ||||
| 11 | Door lock rear right | 1 | 51228138928 | $141.99 | Shop at ECS Tuning | |||||
| 12 | Torx-bolt with washer | M6X12 | 2 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| 16 | Torx bolt | ISA M6X12 | 2 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 17 | Lock plate | 2 | 41351888409 | $1.40 | ENDED | Shop at ECS Tuning | ||||
| 18 | Grommet | 4 | 52208238999 | $0.40 | Shop at ECS Tuning |
