Body-side frame for BMW 5 Series E34 525ix (1996)

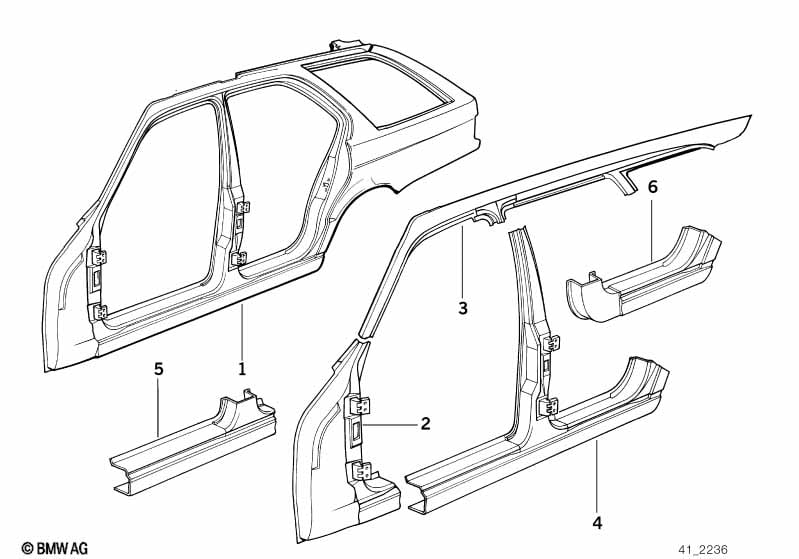

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body-side frame left | 1 | 41008149265 | $1113.77 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body-side frame right | 1 | 41008149266 | $1113.77 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left exterior column A | 1 | 41001946313 | $544.60 | ENDED | Shop at ECS Tuning | ||||
| 02 | Column A exterior right | 1 | 41001946314 | $544.60 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roof frame left | 1 | 41008149263 | $381.67 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right roof frame | 1 | 41008149264 | $381.67 | ENDED | Shop at ECS Tuning | ||||
| 04 | Column B with left rocker panel | 1 | 41001946315 | $552.81 | ENDED | Shop at ECS Tuning | ||||
| 04 | Column B with right rocker panel | 1 | 41001946316 | $552.81 | ENDED | Shop at ECS Tuning | ||||
| 05 | Section of front left entrance | 1 | 41001946319 | $154.62 | Shop at ECS Tuning | |||||
| 05 | Section of front right entrance | 1 | 41001946320 | $154.62 | Shop at ECS Tuning | |||||
| 06 | Section of rear left entrance | 1 | 41008181707 | $226.67 | Shop at ECS Tuning | |||||
| 06 | Section of rear right entrance | 1 | 41008181708 | $226.67 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
