Single components for body-side frame for BMW 5 Series E34 520i (1996)

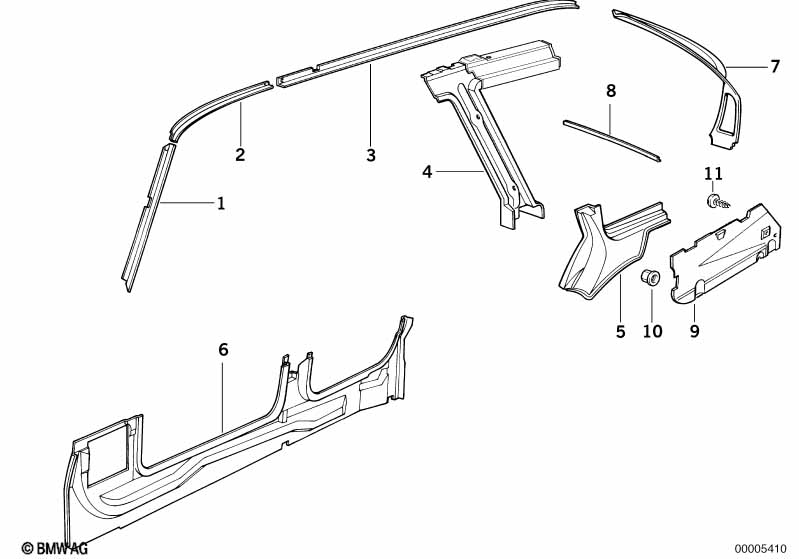

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection plate roof front left | 1 | 41321973881 | $19.53 | ENDED | Shop at ECS Tuning | ||||
| 01 | Connection plate roof front right | 1 | 41321973882 | $19.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection plate roof front left | 1 | 41318110493 | $19.84 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection plate roof front right | 1 | 41318110494 | $19.84 | ENDED | Shop at ECS Tuning | ||||
| 03 | Support left | 1 | 41008133347 | $26.78 | ENDED | Shop at ECS Tuning | ||||
| 03 | Support right | 1 | 41008133348 | $26.78 | ENDED | Shop at ECS Tuning | ||||
| 04 | Left interior column C | 1 | 41218208491 | $55.80 | ENDED | Shop at ECS Tuning | ||||
| 04 | Right interior column C | 1 | 41218208492 | $55.80 | ENDED | Shop at ECS Tuning | ||||
| 05 | Reinforcement left | 1 | 41008133349 | $72.54 | ENDED | Shop at ECS Tuning | ||||
| 05 | Reinforcement right | 1 | 41008133350 | $72.54 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left side member | 1 | 41111946525 | $166.10 | ENDED | Shop at ECS Tuning | ||||
| 06 | Right side member | 1 | 41111946526 | $166.10 | ENDED | Shop at ECS Tuning | ||||
| 07 | Left interior column D | 1 | 41008133353 | $86.68 | ENDED | Shop at ECS Tuning | ||||
| 07 | Right interior column D | 1 | 41008133354 | $86.68 | ENDED | Shop at ECS Tuning | ||||
| 08 | Support left | 1 | 41008133341 | $10.04 | ENDED | Shop at ECS Tuning | ||||
| 08 | Support right | 1 | 41008133342 | $10.04 | ENDED | Shop at ECS Tuning | ||||
| 09 | Audio universal bracket | 1 | 51718133426 | $27.16 | ENDED | Shop at ECS Tuning | ||||
| 10 | Plastic nut for coarse threaded pin | M6 | 3 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST4,8X19-Z1 | 2 | 07119906765 | $0.56 | Shop at ECS Tuning |
