Single components for trunk lid for BMW 5 Series E34 525ix (1996)

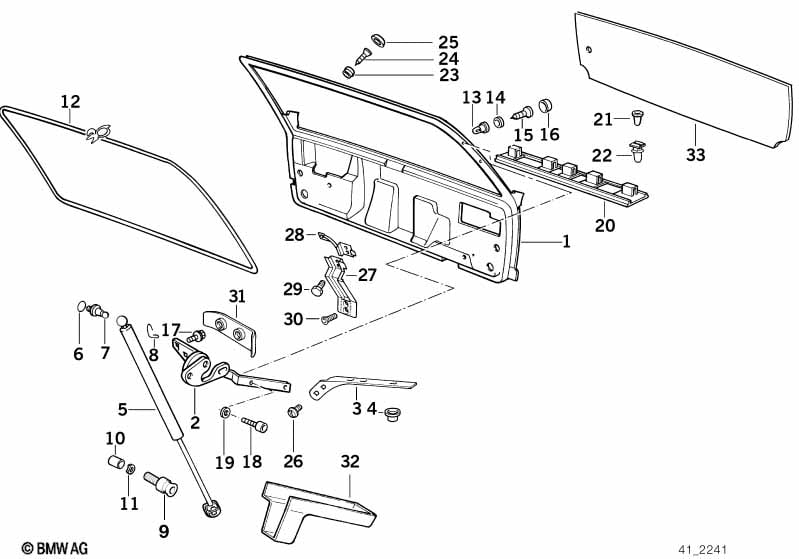

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT SUN BLIND |
||||||||||
| 01 | Trunk lid | 1 | 41622267207 | $569.16 | Shop at ECS Tuning | |||||
| 02 | Left trunk lid hinge | 1 | 41628149489 | $109.39 | Shop at ECS Tuning | |||||
| 02 | Right trunk lid hinge | 1 | 41628149490 | $109.39 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bar left | 1 | 51318149743 | $20.89 | Shop at ECS Tuning | |||||
| 03 | Bar right | 1 | 51318149744 | $20.89 | Shop at ECS Tuning | |||||
| 04 | Nut | M6 | 6 | 51318120405 | $3.95 | Shop at ECS Tuning | ||||
| 05 | Left gas pressurized spring | 1 | 51248149327 | $68.28 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right gas pressurized spring | 1 | 51248149328 | $68.28 | Shop at ECS Tuning | |||||
| 06 | O-ring | 15X1,8 | 2 | 07119900149 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Ball pin | M8 | 2 | 41218186446 | Shop at ECS Tuning | |||||
| 08 | Safety clip | S10 | 2 | 07119987611 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Ball head bolt | ISA M8 | 2 | 51248149382 | $8.11 | Shop at ECS Tuning | ||||
| 10 | Threaded sleeve | M8X34 | 2 | 41628149294 | $4.25 | Shop at ECS Tuning | ||||
| 11 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 12 | Trunk lid gasket | 1 | 51718120173 | $116.44 | Shop at ECS Tuning | |||||
| 13 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 14 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 15 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 16 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 16 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M8X22-Z1 10.9 | 4 | 07119900605 | $1.18 | Shop at ECS Tuning | ||||
| 18 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 19 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 20 | Cover | 1 | 51138120522 | $20.44 | Shop at ECS Tuning | |||||
| 21 | Grommet | 2 | 51138124389 | $1.29 | Shop at ECS Tuning | |||||
| 22 | Clamp | 2 | 51718108613 | $0.29 | Shop at ECS Tuning | |||||
| 23 | Holder | 4 | 51498149269 | $0.49 | Shop at ECS Tuning | |||||
| 24 | Fillister head self-tapping screw | ST3,5X13-Z1 | 4 | 07119907951 | $0.18 | Shop at ECS Tuning | ||||
| 25 | Stop buffer | 4 | 51498149270 | $1.58 | Shop at ECS Tuning | |||||
| 26 | Torx-bolt with washer | M6X12 | 4 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| 27 | Lower support | 1 | 51248149377 | $18.75 | ENDED | Shop at ECS Tuning | ||||
| 28 | Upper support | 1 | 51248149380 | $17.62 | Shop at ECS Tuning | |||||
| 29 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 30 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 31 | Covering left | 1 | 51248149397 | $11.05 | Shop at ECS Tuning | |||||
| 31 | Covering right | 1 | 51248149398 | $14.41 | ENDED | Shop at ECS Tuning | ||||
| 32 | Left hinge cover | 1 | 51498133657 | $9.49 | ENDED | Shop at ECS Tuning | ||||
| 32 | Right hinge cover | 1 | 51498133658 | $9.49 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
