Central locking system for BMW 5 Series E34 525i (1995)

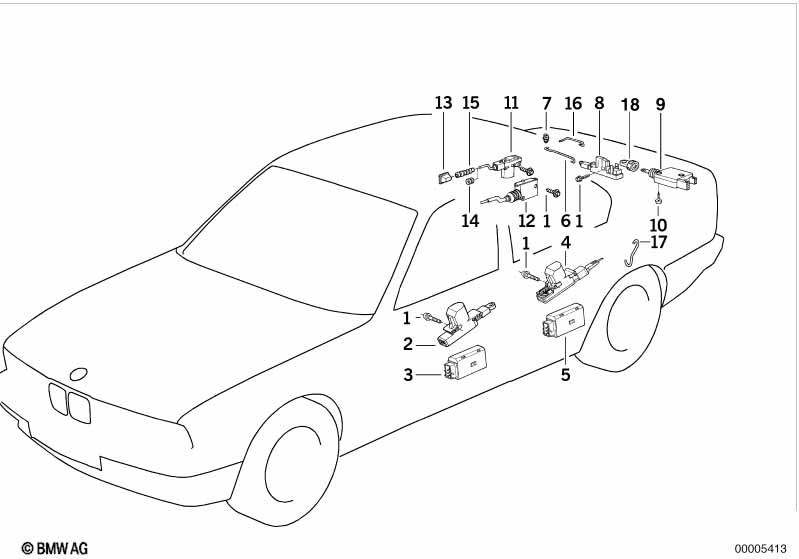

This Central locking system technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
|||||||||
| 01 | Hex bolt with washer | L=16MM | X | 51261375979 | $0.41 | Shop at ECS Tuning | ||||
| 03 | Actuator | 2 | 09/1991 | 67118353012 | Shop at ECS Tuning | |||||
| 05 | Actuator | 2 | 09/1991 | 67118353011 | Shop at ECS Tuning | |||||
| 06 | Connection rod | 1 | 51241946130 | $1.89 | Shop at ECS Tuning | |||||
| 07 | Circlip | 1 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 09 | Actuator | 1 | 09/1991 | 67118353000 | $86.30 | ENDED | Shop at ECS Tuning | |||
| 10 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 09/1991 | 07149113701 | $0.38 | Shop at ECS Tuning | |||
| 12 | Actuator | 1 | 09/1991 | 67116987626 | $57.47 | ENDED | Shop at ECS Tuning | |||
| 13 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 14 | Sleeve | 1 | 51258116266 | $1.10 | Shop at ECS Tuning | |||||
| 15 | Rubber boot | 1 | 51251957173 | $5.13 | Shop at ECS Tuning | |||||
| 18 | Connection piece | VDO | 1 | 09/1991 | 67118361868 | $0.73 | SI 511093743 | Shop at ECS Tuning | ||
| 18 | Connection piece | KIEKERT | 1 | 09/1991 | 67118361869 | $0.38 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Central locking system?
- This technical diagram illustrates the Central locking system within the Bodywork group for the 5 Series E34 525i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt with washer (Part #51261375979).
- Which models use the hardware listed in this Central locking system?
- The hardware and components featured in the Central locking system are specific to the 5 Series E34 525i produced during 1995. These technical specifications ensure that parts like the Hex bolt with washer (51261375979) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Central locking system assembly?
- Each item in the Central locking system corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Hex bolt with washer by locating its position on the schematic, which then links to the official BMW part number 51261375979 for the Bodywork section.
