Central locking system for BMW 5 Series E34 525td (1996)

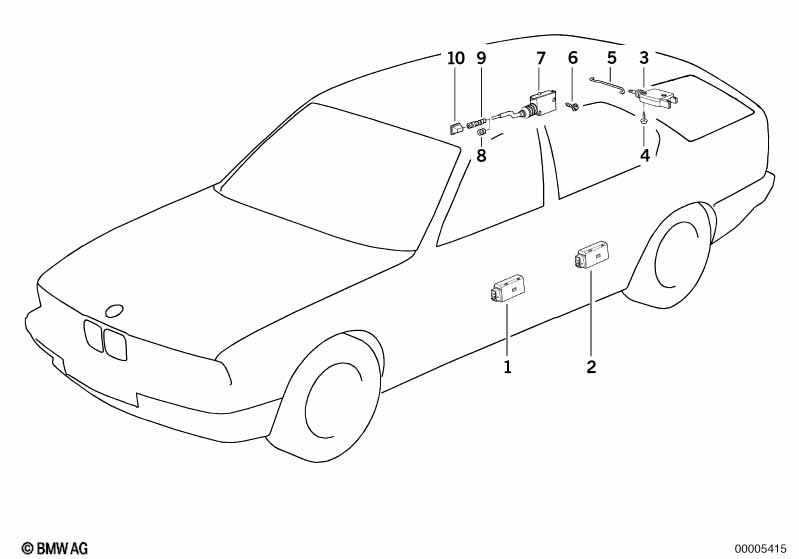

This Central locking system technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
|||||||||
| 01 | Actuator | 2 | 67118353012 | Shop at ECS Tuning | ||||||
| 02 | Actuator | 2 | 67118353011 | Shop at ECS Tuning | ||||||
| 03 | Actuator f trunk lid | 2-POLIG | 1 | 67118360225 | $86.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Screw for thermoplastic plastics | M5X12 | 2 | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Connection rod | 1 | 51248120165 | $3.98 | ENDED | Shop at ECS Tuning | ||||
| 06 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Actuator | 1 | 67116987626 | $57.47 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sleeve | 1 | 51258116266 | $1.10 | Shop at ECS Tuning | |||||
| 09 | Rubber boot | 1 | 51251957173 | $5.13 | Shop at ECS Tuning | |||||
| 10 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
