Trunk lid/rear window for BMW 5 Series E34 525td (1996)

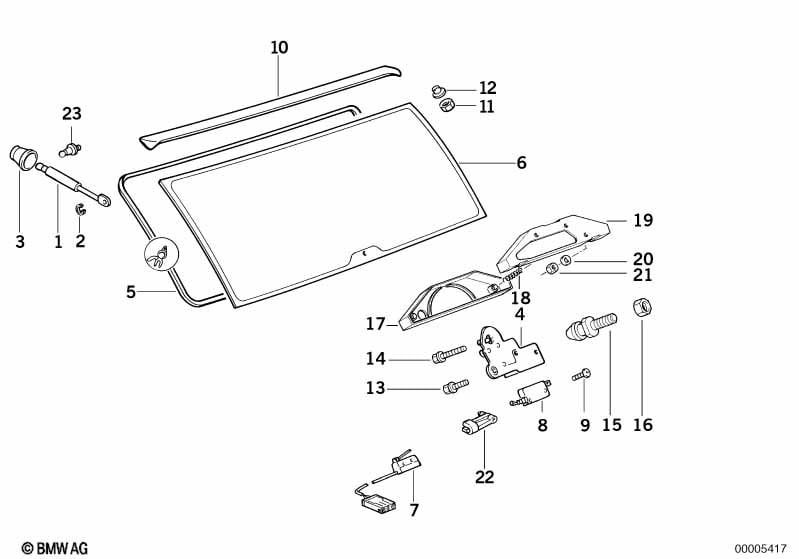

This Trunk lid/rear window technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gas pressurized spring | 350N | 2 | 51248120172 | $37.67 | Shop at ECS Tuning | ||||
| 02 | Circlip | 4,0 | 2 | 07119932822 | $0.09 | Shop at ECS Tuning | ||||
| 03 | sealing | 2 | 51248149164 | $2.81 | Shop at ECS Tuning | |||||
| 04 | Rear window lock | 1 | 51248120167 | $58.24 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 51248172158 | $2.08 | Shop at ECS Tuning | |||||
| 05 | Weatherstrip | 1 | 51248120174 | $78.94 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rear window green | 1 | 51318120284 | $458.68 | Shop at ECS Tuning | |||||
| For vehicles with Tinted glass SA761 |
=Yes |
|||||||||
| 06 | Rear window green | 1 | 51312280297 | Shop at ECS Tuning | ||||||
| For vehicles with 3rd stoplamp |
=Yes |
|||||||||
| 06 | Rear window green | 1 | 51318120285 | $405.28 | Shop at ECS Tuning | |||||
| 07 | Microswitch rear window lock | 1 | 61318355127 | $38.47 | Shop at ECS Tuning | |||||
| 08 | Actuator | 1 | 67111392020 | $86.30 | ENDED | Shop at ECS Tuning | ||||
| 09 | Screw for thermoplastic plastics | M5X12 | 2 | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 10 | Rear spoiler | 1 | 51718120035 | $240.95 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rear spoiler f stoplamp | 1 | 51718120506 | $240.95 | Shop at ECS Tuning | |||||
| 11 | Nut | M6 | 6 | 51318120405 | $3.95 | Shop at ECS Tuning | ||||
| 12 | Grommet | 6 | 51718149084 | $0.52 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X45-U1 | 1 | 07119905547 | $1.17 | Shop at ECS Tuning | ||||
| 15 | Lock pin | M8 | 1 | 51248120168 | $8.27 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 17 | Covering Lower | SCHWARZ | 1 | 51318149256 | $5.07 | Shop at ECS Tuning | ||||
| 18 | Compression spring | 2 | 51318133611 | $0.32 | Shop at ECS Tuning | |||||
| 19 | Covering Upper | SCHWARZ | 1 | 51318149255 | $9.38 | Shop at ECS Tuning | ||||
| 20 | Washer | A6,4-ZNNIV SI | 3 | 07119904202 | Shop at ECS Tuning | |||||
| 21 | Hex nut | M6-04-2-ZN | 3 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 22 | Connection piece | 1 | 51248172157 | $4.60 | Shop at ECS Tuning | |||||
| 23 | Pin | 2 | 41328133149 | $6.15 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
