Front body bracket for BMW 5 Series E34 530i (1995)

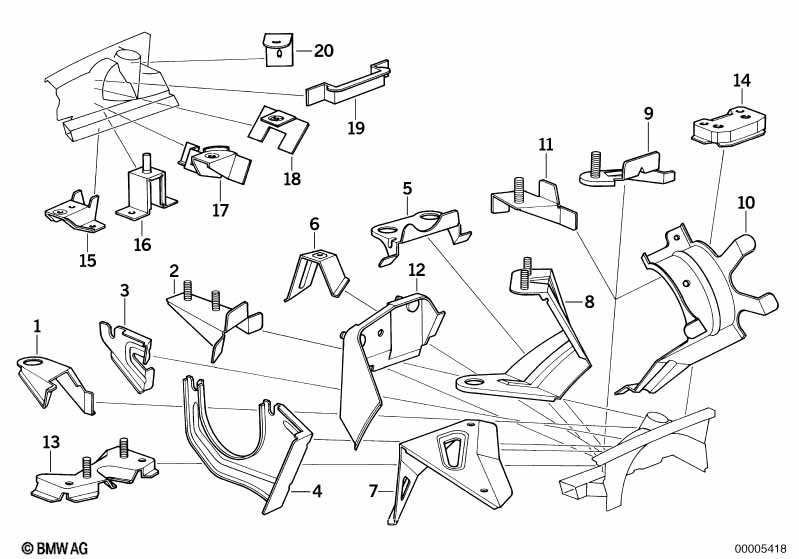

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Bracket f lower hydr.unit ABS/ASC+T | 1 | 01/1994 | 41148172459 | $8.90 | Shop at ECS Tuning | ||||
| 04 | Bracket f upper hydr.unit asg | 1 | 01/1994 | 41148174074 | $7.73 | ENDED | Shop at ECS Tuning | |||
| 05 | Bracket, pressure reservoir controller | 1 | 41148140995 | ENDED | Shop at ECS Tuning | |||||
| 06 | Bracket ASC hydraulic system | 1 | 41148147942 | ENDED | Shop at ECS Tuning | |||||
| 08 | Bracket, oil carrier | 1 | 41148147944 | ENDED | Shop at ECS Tuning | |||||
| 09 | Pressure accumulator bracket front | 1 | 41148147945 | ENDED | Shop at ECS Tuning | |||||
| 10 | Bracket activated Carbon container | 1 | 41148147935 | $9.57 | Shop at ECS Tuning | |||||
| 11 | Pressure accumulator bracket rear | 1 | 41148147946 | ENDED | Shop at ECS Tuning | |||||
| 12 | Console ASC hydraulic system | 1 | 41148147943 | ENDED | Shop at ECS Tuning | |||||
| 15 | Bracket suction pipe airconditioner | 1 | 41118139826 | $5.81 | Shop at ECS Tuning | |||||
| 16 | Lower air cleaner bracket | 1 | 41148147932 | $6.70 | Shop at ECS Tuning | |||||
| 17 | Center air cleaner bracket | 1 | 41148147931 | $4.68 | Shop at ECS Tuning | |||||
| 18 | Air cleaner bracket front | 1 | 41148147930 | $3.43 | Shop at ECS Tuning | |||||
| 19 | Support fluid container windshield wash | 1 | 41148147936 | $4.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
