Front door-hinge/door brake for BMW 3 Series E36 320i (1999)

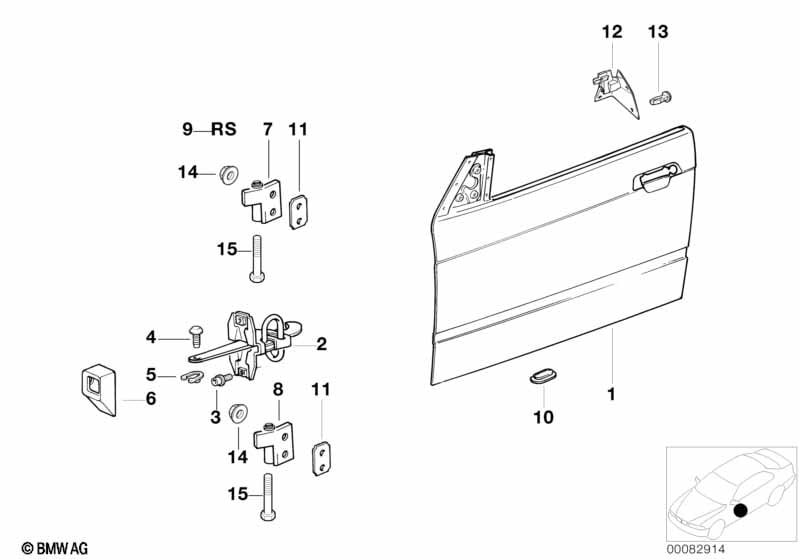

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front door, steel | 1 | 03/1997 | 41518230467 | $708.66 | ENDED | Shop at ECS Tuning | |||
| 01 | Right front door, steel | 1 | 03/1997 | 41518230468 | $708.66 | Shop at ECS Tuning | ||||
| For vehicles with Side airbag |
=Yes |
|||||||||
| 01 | Left front door, steel | 1 | 41518230467 | $708.66 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right front door, steel | 1 | 41518230468 | $708.66 | Shop at ECS Tuning | |||||
| 02 | Front door brake | 2 | 51218161782 | $36.05 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X14 | 4 | 51218132858 | $0.56 | Shop at ECS Tuning | ||||
| 04 | Pin | 2 | 51218141116 | $1.10 | Shop at ECS Tuning | |||||
| 05 | Securing plate | 1 | 51211948157 | $0.48 | Shop at ECS Tuning | |||||
| 06 | Door brake gasket | 1 | 51218122579 | $7.46 | Shop at ECS Tuning | |||||
| 07 | Left upper front door hinge | 1 | 41521960233 | $29.79 | Shop at ECS Tuning | |||||
| 07 | Right upper front door hinge | 1 | 41521960234 | $29.79 | Shop at ECS Tuning | |||||
| 08 | Left lower front door hinge | 1 | 41511960205 | $29.79 | Shop at ECS Tuning | |||||
| 08 | Right lower front door hinge | 1 | 41511960206 | $29.79 | Shop at ECS Tuning | |||||
| 09 | Repair kit for door hinge | X | 41511960998 | $9.84 | Shop at ECS Tuning | |||||
| CONSISTING OF PIN BUSH FLAT WASHER CIRCLIP HEX BOLT WITH WASHER |
||||||||||
| 10 | Blind plug | D=20MM | 1 | 51711964810 | $0.39 | Shop at ECS Tuning | ||||
| 11 | Shim | 1,0MM | 1 | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 11 | Shim | 0,5MM | 1 | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 12 | Covering left | 1 | 01/1993 | 51328201065 | $25.30 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Inner left window channel cover | 1 | 01/1993 | 51218201063 | $21.53 | Shop at ECS Tuning | ||||
| 12 | Covering right | 1 | 01/1993 | 51328201066 | $25.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Inner right window channel cover | 1 | 01/1993 | 51218201064 | $21.53 | Shop at ECS Tuning | ||||
| 13 | Plug | D=4,00 MM | 2 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X22-8.8-MK | 4 | 07119906263 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Front door-hinge/door brake?
- This technical diagram illustrates the Front door-hinge/door brake within the Bodywork group for the 3 Series E36 320i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Left front door, steel (Part #41518230467).
- Which models use the hardware listed in this Front door-hinge/door brake?
- The hardware and components featured in the Front door-hinge/door brake are specific to the 3 Series E36 320i produced during 1999. These technical specifications ensure that parts like the Left front door, steel (41518230467) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front door-hinge/door brake assembly?
- Each item in the Front door-hinge/door brake corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Left front door, steel by locating its position on the schematic, which then links to the official BMW part number 41518230467 for the Bodywork section.
