Front body bracket left for BMW 3 Series E36 323i (1999)

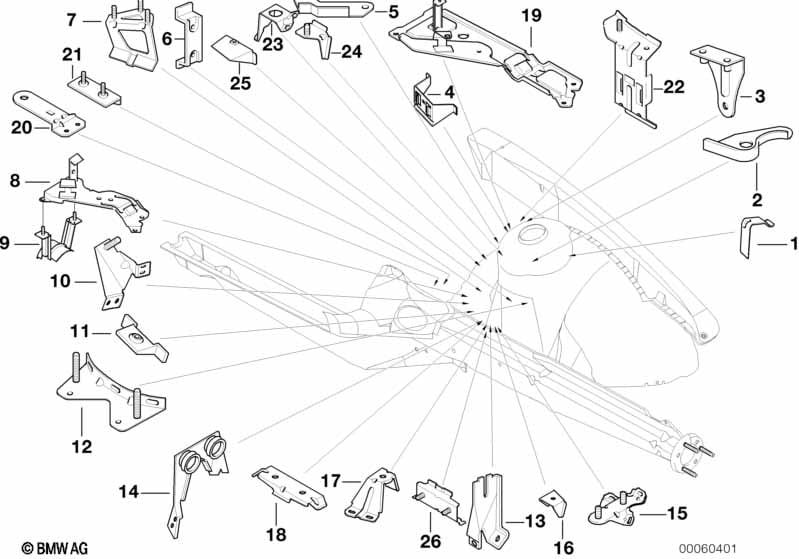

This Front body bracket left technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bracket ADS II | 1 | 41148144284 | $5.35 | Shop at ECS Tuning | |||||
| 06 | Bracket activated Carbon container | 1 | 41148144393 | $4.88 | Shop at ECS Tuning | |||||
| 11 | Bracket fuel strainer | 1 | 41118144395 | $2.25 | Shop at ECS Tuning | |||||
| For vehicles with Automatic stability control (ASC+T) |
S214A=Yes |
|||||||||
| 13 | Bracket ABS-Hydraulic unit front | 1 | 09/1996 | 41118122484 | $4.68 | Shop at ECS Tuning | ||||
| 14 | Bracket ABS hydraulic unit rear | 1 | 09/1996 | 41111977267 | $13.28 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323i Front body bracket left?
- This technical diagram illustrates the Front body bracket left within the Bodywork group for the 3 Series E36 323i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Bracket ADS II (Part #41148144284).
- Which models use the hardware listed in this Front body bracket left?
- The hardware and components featured in the Front body bracket left are specific to the 3 Series E36 323i produced during 1999. These technical specifications ensure that parts like the Bracket ADS II (41148144284) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body bracket left assembly?
- Each item in the Front body bracket left corresponds to the numbered list below the illustration. For the 3 Series E36 323i, you can identify the Bracket ADS II by locating its position on the schematic, which then links to the official BMW part number 41148144284 for the Bodywork section.
