Front body bracket right for BMW 3 Series E36 318is (1996)

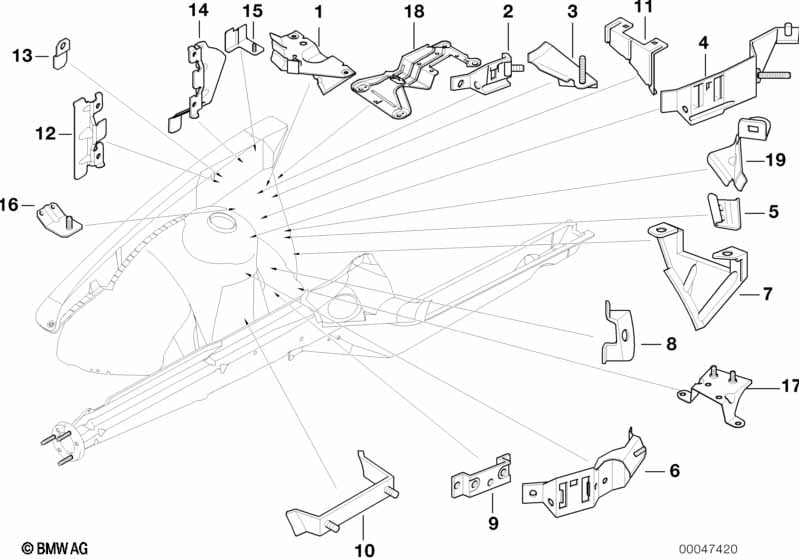

This Front body bracket right technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Diagnosis plug bracket | 1 | 09/1994 | 41148193254 | $3.08 | ENDED | Shop at ECS Tuning | |||
| 03 | Rear ignition coil support | 1 | 09/1993 | 41148165487 | $5.38 | Shop at ECS Tuning | ||||
| 05 | Bracket intensivcleaner container | 1 | 41148144394 | $4.62 | Shop at ECS Tuning | |||||
| 07 | Holder external ignition base | 1 | 41118153757 | $6.85 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket suction pipe airconditioner | 1 | 41148151502 | $1.90 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Front body bracket right?
- This technical diagram illustrates the Front body bracket right within the Bodywork group for the 3 Series E36 318is produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Diagnosis plug bracket (Part #41148193254).
- Which models use the hardware listed in this Front body bracket right?
- The hardware and components featured in the Front body bracket right are specific to the 3 Series E36 318is produced during 1996. These technical specifications ensure that parts like the Diagnosis plug bracket (41148193254) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body bracket right assembly?
- Each item in the Front body bracket right corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Diagnosis plug bracket by locating its position on the schematic, which then links to the official BMW part number 41148193254 for the Bodywork section.
