Single components for body-side frame for BMW 3 Series E36 M3 (1999)

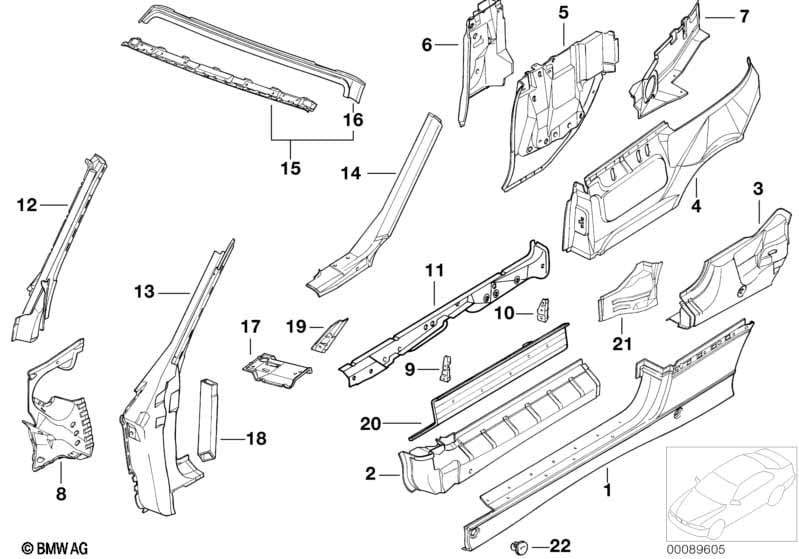

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exterior left entrance | 1 | 41218170639 | $227.87 | ENDED | Shop at ECS Tuning | ||||
| 01 | Exterior right entrance | 1 | 41218170640 | $227.87 | ENDED | Shop at ECS Tuning | ||||
| 02 | Interior left entrance | 1 | 41118170623 | $430.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Interior right entrance | 1 | 41118170624 | $430.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lower left exterior lateral part | 1 | 41118170625 | $213.06 | Shop at ECS Tuning | |||||
| 03 | Lower right exterior lateral part | 1 | 41118170626 | $213.06 | Shop at ECS Tuning | |||||
| 04 | Upper left exterior lateral part | 1 | 41218170641 | $239.18 | Shop at ECS Tuning | |||||
| 04 | Upper right exterior lateral part | 1 | 41218170642 | $239.18 | Shop at ECS Tuning | |||||
| 05 | Left inner lateral trim panel | 1 | 41218170645 | $241.25 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right inner lateral trim panel | 1 | 41218170646 | $241.25 | ENDED | Shop at ECS Tuning | ||||
| 06 | Column center left | 1 | 41218170643 | $107.62 | ENDED | Shop at ECS Tuning | ||||
| 06 | Column center right | 1 | 41218170644 | $99.32 | ENDED | Shop at ECS Tuning | ||||
| 07 | Left railing reinforcement | 1 | 41138170627 | $101.33 | ENDED | Shop at ECS Tuning | ||||
| 07 | Right railing reinforcement | 1 | 41138170628 | $101.33 | Shop at ECS Tuning | |||||
| 08 | Connect.plate f.left side panel frame | 1 | 41218170637 | $86.83 | ENDED | Shop at ECS Tuning | ||||
| 08 | Connect.plate f.right side panel frame | 1 | 41218170638 | $86.83 | ENDED | Shop at ECS Tuning | ||||
| 09 | Reinf.shield AT left front side member | 1 | 41128168079 | $7.63 | ENDED | Shop at ECS Tuning | ||||
| 09 | Reinf.shield AT rightt front side member | 1 | 41128168080 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 10 | Reinf.shield AT left rear side member | 1 | 41128185195 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 10 | Reinf.shield AT right rear side member | 1 | 41128185196 | ENDED | Shop at ECS Tuning | |||||
| 11 | Left side member | 1 | 41128168071 | $112.49 | Shop at ECS Tuning | |||||
| 11 | Right side member | 1 | 41128168072 | $112.49 | Shop at ECS Tuning | |||||
| 12 | Inner left apron | 1 | 41218170635 | $166.62 | Shop at ECS Tuning | |||||
| 12 | Inner right apron | 1 | 41218170636 | $166.62 | ENDED | Shop at ECS Tuning | ||||
| 13 | Left exterior column A | 1 | 41218170633 | $603.43 | Shop at ECS Tuning | |||||
| 13 | Column A exterior right | 1 | 41218170634 | $603.43 | Shop at ECS Tuning | |||||
| 14 | Left apron | 1 | 41328170647 | $81.70 | Shop at ECS Tuning | |||||
| 14 | Right apron | 1 | 41328170648 | $81.70 | Shop at ECS Tuning | |||||
| 15 | Upper apron | 1 | 41328170653 | $108.79 | Shop at ECS Tuning | |||||
| 16 | Upper apron | 1 | 41328170654 | $108.79 | Shop at ECS Tuning | |||||
| 17 | Left reinforcement floor panel | 1 | 41128168075 | $21.09 | ENDED | Shop at ECS Tuning | ||||
| 17 | Right reinforcement floor panel | 1 | 41128168076 | $21.09 | ENDED | Shop at ECS Tuning | ||||
| 18 | Pipe left | 1 | 41218179195 | $55.28 | ENDED | Shop at ECS Tuning | ||||
| 18 | Pipe right | 1 | 41218179196 | $55.28 | ENDED | Shop at ECS Tuning | ||||
| 19 | Reinforcement left | 1 | 41128168073 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 19 | Reinforcement right | 1 | 41128168074 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 20 | Left side member | 1 | 41128153759 | $150.80 | Shop at ECS Tuning | |||||
| 20 | Right side member | 1 | 41128153760 | $150.80 | ENDED | Shop at ECS Tuning | ||||
| 21 | Rear left side member | 1 | 41118132991 | $120.63 | ENDED | Shop at ECS Tuning | ||||
| 21 | Right rear side member | 1 | 41118132992 | $120.63 | ENDED | Shop at ECS Tuning |
