Folding top compartment for BMW 3 Series E36 320i (1996)

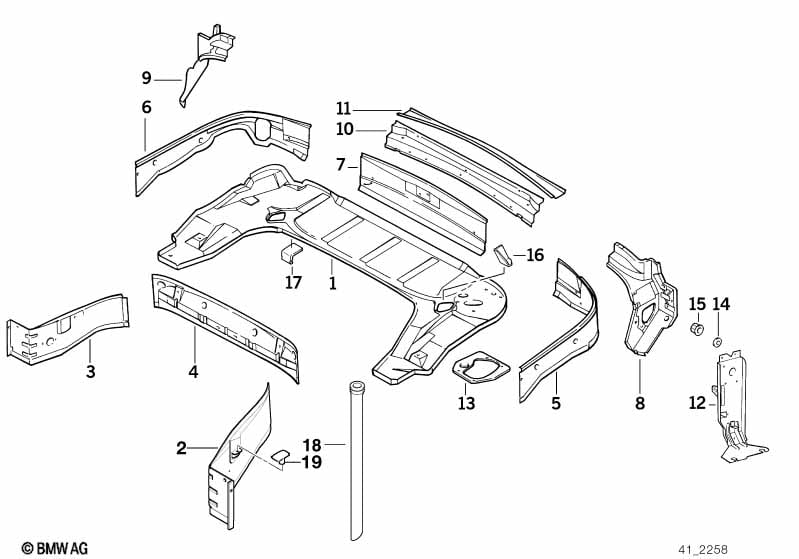

This Folding top compartment technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood compartment bottom | 1 | 41138170649 | $183.75 | Shop at ECS Tuning | |||||
| 02 | Inner left hood compartment panel | 1 | 41138170629 | $67.03 | ENDED | Shop at ECS Tuning | ||||
| 03 | Inner right hood compartment panel | 1 | 41138170630 | $67.03 | ENDED | Shop at ECS Tuning | ||||
| 04 | Front hood compartment panel | 1 | 41138170650 | $88.76 | ENDED | Shop at ECS Tuning | ||||
| 05 | Exterior left hood compartment panel | 1 | 41138170631 | $110.95 | ENDED | Shop at ECS Tuning | ||||
| 06 | Exterior right hood compartment panel | 1 | 41138170632 | $110.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rear hood compartment panel | 1 | 41138170652 | $96.32 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rear window frame left | 1 | 41328170657 | $43.98 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rear window frame right | 1 | 41328170658 | $43.98 | ENDED | Shop at ECS Tuning | ||||
| 10 | Center rear window frame | 1 | 41328170655 | $75.62 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cover of rear window frame bottom part | 1 | 41328170656 | $56.95 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with EM Folding top |
=Yes |
|||||||||
| 12 | Motor bracket of folding top flap | 1 | 51258161694 | $17.59 | Shop at ECS Tuning | |||||
| 13 | Reinforcement of hood compartment drive | 1 | 41138170651 | $9.78 | ENDED | Shop at ECS Tuning | ||||
| 14 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 15 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 16 | Stopper engine bearing | 1 | 41138183157 | $7.37 | Shop at ECS Tuning | |||||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 17 | Bracket CD-changer | 1 | 41138185169 | $3.37 | Shop at ECS Tuning | |||||
| 18 | Water outlet hose | L=350MM | 2 | 51738182000 | $3.41 | Shop at ECS Tuning | ||||
| 19 | Stopper | SCHWARZ | 2 | 54318222927 | $1.89 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
