Manual folding top flap mechanism for BMW 3 Series E36 325i (1993)

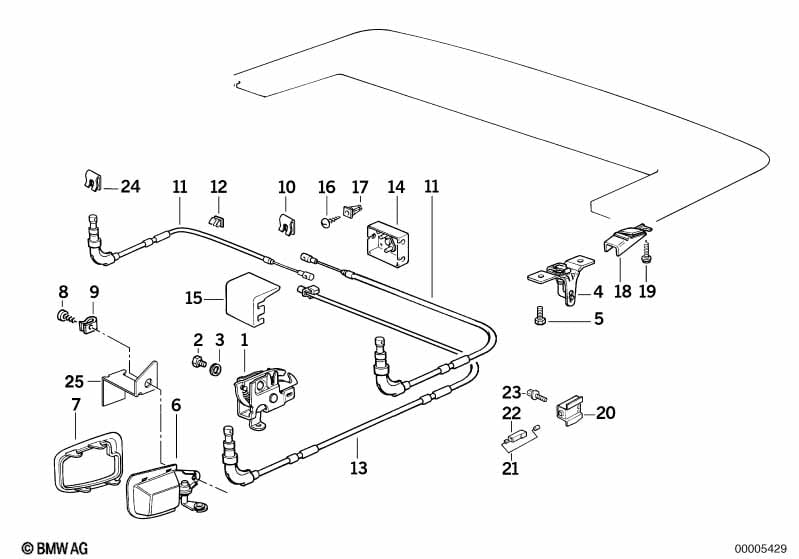

This Manual folding top flap mechanism technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock right | 1 | 51258162000 | $61.28 | Shop at ECS Tuning | |||||
| 01 | Lock left | 1 | 51258164851 | $23.47 | Shop at ECS Tuning | |||||
| 02 | Fillister-head screw | 4 | 51248166982 | $0.56 | Shop at ECS Tuning | |||||
| 03 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Catch bracket | 2 | 51258200482 | $21.02 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Door handle inner right | SCHWARZ | 1 | 51211977540 | $12.85 | Shop at ECS Tuning | ||||
| 07 | Covering right | 1 | 51228219024 | $3.92 | Shop at ECS Tuning | |||||
| 08 | Fillister head self-tapping screw | ST4,8X16-Z1 | 1 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Body nut | ST 4,8-8-ZNS | 1 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Clamp | A5 | 3 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Bowden cable | 2 | 51258164854 | $31.73 | Shop at ECS Tuning | |||||
| 12 | Clip | 4 | 51258183280 | $1.63 | Shop at ECS Tuning | |||||
| 13 | Bowden cable | 1 | 51258164853 | $20.48 | Shop at ECS Tuning | |||||
| 14 | Deflection lever | 1 | 51258176417 | $53.85 | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 51258165488 | $3.33 | Shop at ECS Tuning | |||||
| 16 | Fillister head self-tapping screw | ST4,8X16-Z1 | 2 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 18 | Stopper left | 1 | 51258171801 | $1.75 | Shop at ECS Tuning | |||||
| 18 | Stopper right | 1 | 51258171802 | $1.78 | Shop at ECS Tuning | |||||
| 19 | Hex head screw | ST4,2X13-C-Z2 | 2 | 07119916914 | $0.18 | Shop at ECS Tuning | ||||
| 20 | Drive, locking mechanism | HINTEN | 1 | 67118362050 | $57.47 | Shop at ECS Tuning | ||||
| 21 | Connection rod | 1 | 51258173724 | $10.95 | Shop at ECS Tuning | |||||
| 22 | Sliding piece | 1 | 51258173725 | $1.72 | Shop at ECS Tuning | |||||
| 23 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Clamp | 2 | 51258173603 | $1.87 | Shop at ECS Tuning | |||||
| 25 | Bracket | 1 | 51258191461 | $2.58 | Shop at ECS Tuning |
