Single components for body-side frame for BMW 3 Series E36 323ti (1998)

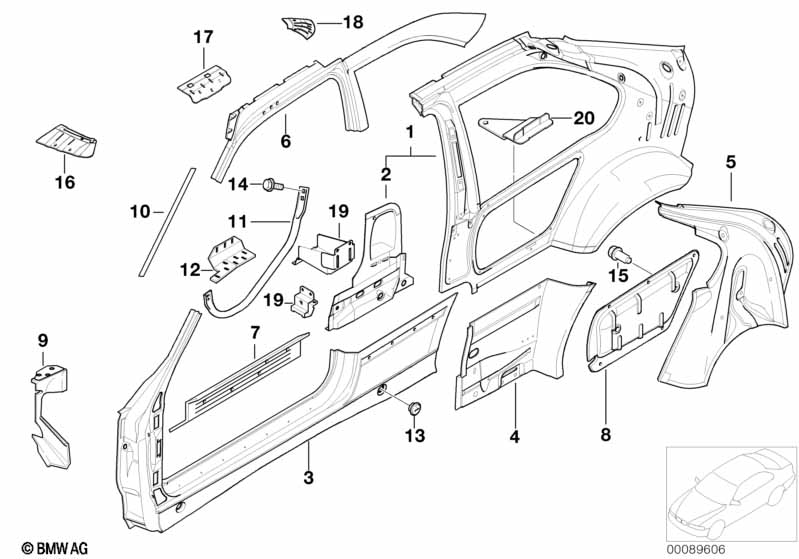

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left inner lateral trim panel | 1 | 41218191141 | $407.72 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right inner lateral trim panel | 1 | 41218191142 | $407.72 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reinforcement entrance rear left | 1 | 41118191127 | $54.22 | Shop at ECS Tuning | |||||
| 02 | Reinforcement entrance rear right | 1 | 41118191128 | $54.22 | Shop at ECS Tuning | |||||
| 03 | Column a with left rocker panel | 1 | 41218191125 | $394.50 | Shop at ECS Tuning | |||||
| 03 | Column B with right rocker panel | 1 | 41218191126 | $394.50 | Shop at ECS Tuning | |||||
| 04 | Interior left entrance | 1 | 41118189979 | $97.79 | ENDED | Shop at ECS Tuning | ||||
| 04 | Interior right entrance | 1 | 41118189980 | $97.79 | ENDED | Shop at ECS Tuning | ||||
| 05 | Reinforcement column left | 1 | 41218191139 | $114.23 | Shop at ECS Tuning | |||||
| 05 | Reinforcement column right | 1 | 41218191140 | $114.23 | ENDED | Shop at ECS Tuning | ||||
| 06 | Roof frame left | 1 | 41228191123 | $325.87 | ENDED | Shop at ECS Tuning | ||||
| 06 | Right roof frame | 1 | 41228191124 | $325.87 | ENDED | Shop at ECS Tuning | ||||
| 07 | Left side member | 1 | 41128119251 | $86.81 | ENDED | Shop at ECS Tuning | ||||
| 07 | Right side member | 1 | 41128119252 | $86.81 | ENDED | Shop at ECS Tuning | ||||
| 08 | Inner right rear cover | 1 | 51718146386 | $17.89 | Shop at ECS Tuning | |||||
| 08 | Inner left rear cover | 1 | 51718146573 | $17.89 | Shop at ECS Tuning | |||||
| 09 | Connect.plate f.left side panel frame | 1 | 41218119255 | $64.75 | Shop at ECS Tuning | |||||
| 09 | Connect.plate f.right side panel frame | 1 | 41218119256 | $64.75 | Shop at ECS Tuning | |||||
| 10 | Connection angle for left cowl panel | 1 | 41218119799 | $12.84 | Shop at ECS Tuning | |||||
| 10 | Connection angle for right cowl panel | 1 | 41218119800 | $12.84 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pipe left | 1 | 41218205537 | $36.32 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pipe right | 1 | 41218205538 | $36.32 | ENDED | Shop at ECS Tuning | ||||
| 13 | Lock | HELLGRAU | 4 | 51718151431 | $0.85 | Shop at ECS Tuning | ||||
| 13 | Lock | DUNKELGRAU | 4 | 51718151432 | $6.18 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M8X22 | 4 | 41218208353 | $0.65 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | L=15 MM | X | 65221370813 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with "Open air" version |
=Yes |
|||||||||
| 16 | Left upper apron reinforcement | 1 | 41312489781 | ENDED | Shop at ECS Tuning | |||||
| 16 | Right upper apron reinforcement | 1 | 41312489782 | ENDED | Shop at ECS Tuning | |||||
| 17 | Left upper column B reinforcement | 1 | 41312489783 | ENDED | Shop at ECS Tuning | |||||
| 17 | Right upper column B reinforcement | 1 | 41312489784 | ENDED | Shop at ECS Tuning | |||||
| 18 | Left upper rear window frame reinforcem. | 1 | 41312489785 | ENDED | Shop at ECS Tuning | |||||
| 18 | Right upper rear window frame reinforcem | 1 | 41312489786 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
