Rear floor parts for BMW 3 Series E36 323ti (1998)

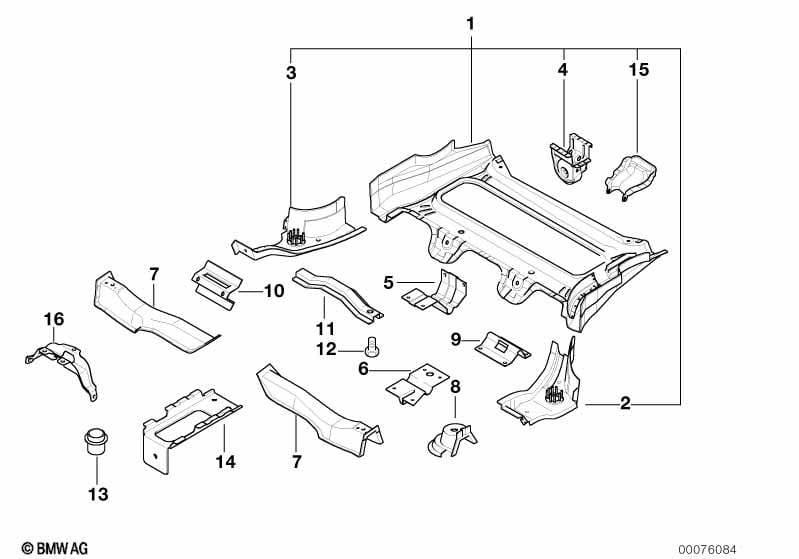

This Rear floor parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support f trunk floor | 1 | 41118189973 | $443.19 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Stopper | 70MM | 2 | 33311092183 | $0.76 | Shop at ECS Tuning | ||||
| 02 | Rear left side member | 1 | 41118189975 | $112.72 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Stopper | 70MM | 2 | 33311092183 | $0.76 | Shop at ECS Tuning | ||||
| 03 | Right rear side member | 1 | 41118189976 | $120.63 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Stopper | 70MM | 2 | 33311092183 | $0.76 | Shop at ECS Tuning | ||||
| 04 | Gearbox suspension | 1 | 41118189974 | $20.62 | Shop at ECS Tuning | |||||
| 05 | Interior rear silencer bracket | 1 | 41128189985 | $5.45 | Shop at ECS Tuning | |||||
| 06 | Exterior rear silencer bracket | 1 | 41128189986 | $6.05 | Shop at ECS Tuning | |||||
| 07 | Left front seat console | 1 | 41118119291 | $32.81 | Shop at ECS Tuning | |||||
| 07 | Right front seat console | 1 | 41118119292 | $32.81 | Shop at ECS Tuning | |||||
| 08 | Left rear seat console | 1 | 41128259863 | $10.70 | Shop at ECS Tuning | |||||
| 08 | Right rear seat console | 1 | 41128259864 | $10.70 | Shop at ECS Tuning | |||||
| 09 | Bracket fuel tank inner rear | 4 | 41128130607 | $2.57 | ENDED | Shop at ECS Tuning | ||||
| 10 | Holder, backrest | 2 | 41128122398 | $3.42 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bridge tunnel below | 1 | 51711960052 | $20.08 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M8X16 | 4 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Holder f emergency wheel pivot bearing | 1 | 41128235757 | $60.48 | Shop at ECS Tuning | |||||
| 16 | Bracket f shifting arm bearing | 1 | 41128246251 | $3.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
