Floor panel trunk/wheel housing rear for BMW 3 Series E36 323ti (1998)

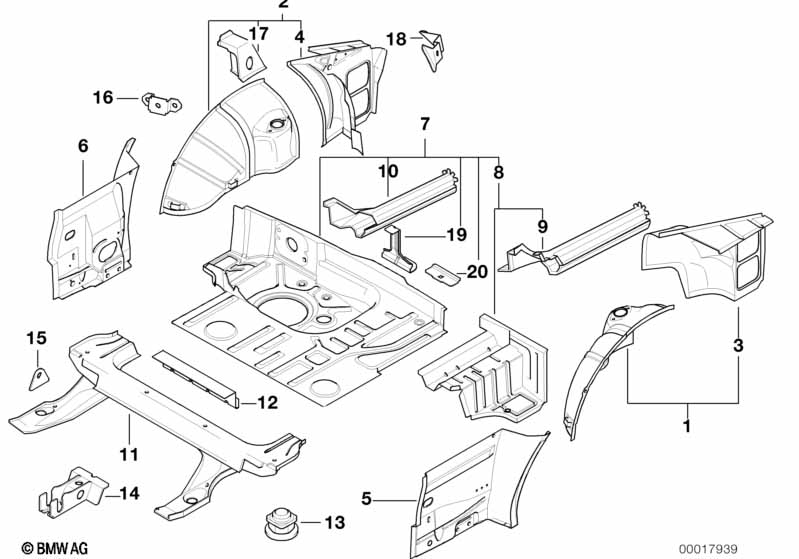

This Floor panel trunk/wheel housing rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear inner wheelhouse | 1 | 41148189977 | $242.25 | Shop at ECS Tuning | |||||
| 02 | Right rear inner wheelhouse | 1 | 41148189978 | $242.25 | Shop at ECS Tuning | |||||
| 03 | Section of left rear wheel housing | 1 | 41148189981 | $106.97 | Shop at ECS Tuning | |||||
| 04 | Section of right rear wheel housing | 1 | 41148189982 | $106.97 | Shop at ECS Tuning | |||||
| 05 | Interior left entrance | 1 | 41118189979 | $97.79 | ENDED | Shop at ECS Tuning | ||||
| 06 | Interior right entrance | 1 | 41118189980 | $97.79 | ENDED | Shop at ECS Tuning | ||||
| 07 | Trunk floor | 1 | 41128235753 | Shop at ECS Tuning | ||||||
| 08 | Floor panel trunk lateral | 1 | 41128189984 | $166.34 | Shop at ECS Tuning | |||||
| 09 | Rear left side member | 1 | 41118189987 | $120.63 | ENDED | Shop at ECS Tuning | ||||
| 10 | Right rear side member | 1 | 41128189988 | $120.63 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cross member floor panel front | 1 | 41118191117 | $165.17 | ENDED | Shop at ECS Tuning | ||||
| 13 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 13 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 14 | Centre backrest bearing bracket | 1 | 41128232116 | $6.33 | Shop at ECS Tuning | |||||
| 15 | Lateral backrest bearing bracket | 2 | 41118232111 | $3.17 | ENDED | Shop at ECS Tuning | ||||
| 16 | Support f lateral upholstery | 2 | 41148232114 | $4.33 | Shop at ECS Tuning | |||||
| 17 | Bracket backrest outer left | 1 | 41148232109 | $21.09 | ENDED | Shop at ECS Tuning | ||||
| 17 | Bracket backrest outer right | 1 | 41148232110 | $21.09 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 18 | Ball hitch bracket | 1 | 41148235758 | ENDED | Shop at ECS Tuning | |||||
| 19 | Rear battery bracket | 1 | 41128235754 | Shop at ECS Tuning | ||||||
| 20 | Rear battery bracket | 1 | 41128235755 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
