Body skeleton for BMW 6 Series E24 635CSi (1989)

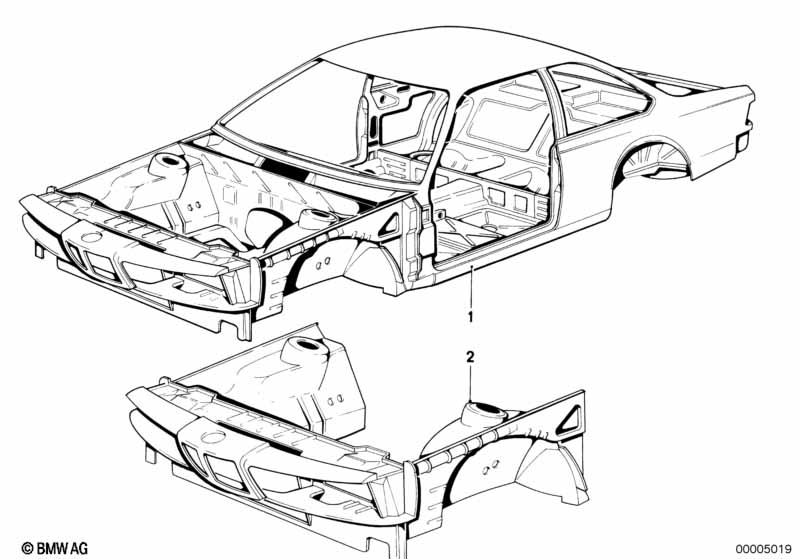

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton | BASIS | 1 | 06/1987 | 41001976487 | ENDED | Shop at ECS Tuning | |||
| 01 | Body skeleton | BASIS | 1 | 06/1987 | 41001976487 | ENDED | Shop at ECS Tuning | |||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 06/1987 | 41001976491 | ENDED | Shop at ECS Tuning | |||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 06/1987 | 41001976491 | ENDED | Shop at ECS Tuning | |||
| 02 | Forward structure | BASIS | 1 | 06/1987 | 41001976481 | $5306.58 | ENDED | Shop at ECS Tuning | ||
| 02 | Forward structure | BASIS | 1 | 06/1987 | 41001976481 | $5306.58 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Body skeleton (Part #41001976487).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Body skeleton (41001976487) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Body skeleton by locating its position on the schematic, which then links to the official BMW part number 41001976487 for the Bodywork section.
