Body skeleton for BMW 3 Series E30 318i (1994)

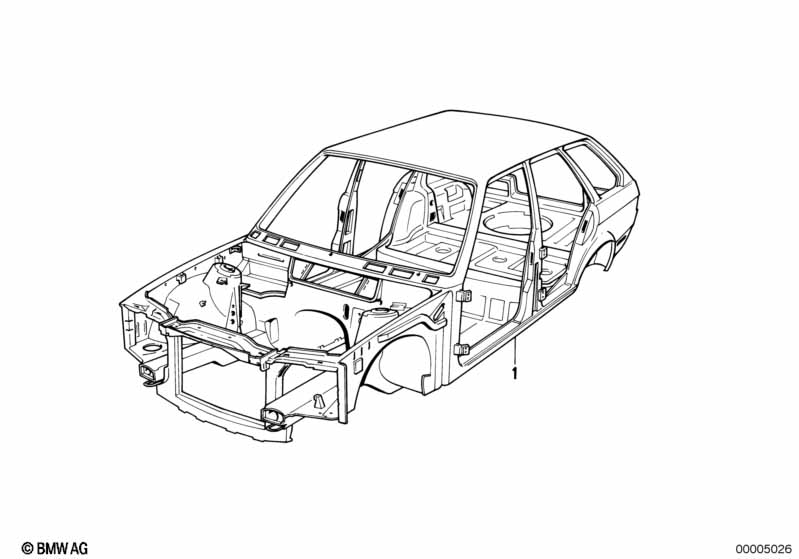

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton | BASIS | 1 | 41001947426 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 41001947427 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the 3 Series E30 318i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Body skeleton (Part #41001947426).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the 3 Series E30 318i produced during 1994. These technical specifications ensure that parts like the Body skeleton (41001947426) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Body skeleton by locating its position on the schematic, which then links to the official BMW part number 41001947426 for the Bodywork section.
