Front body parts for BMW 8 Series E31 850Ci (1993)

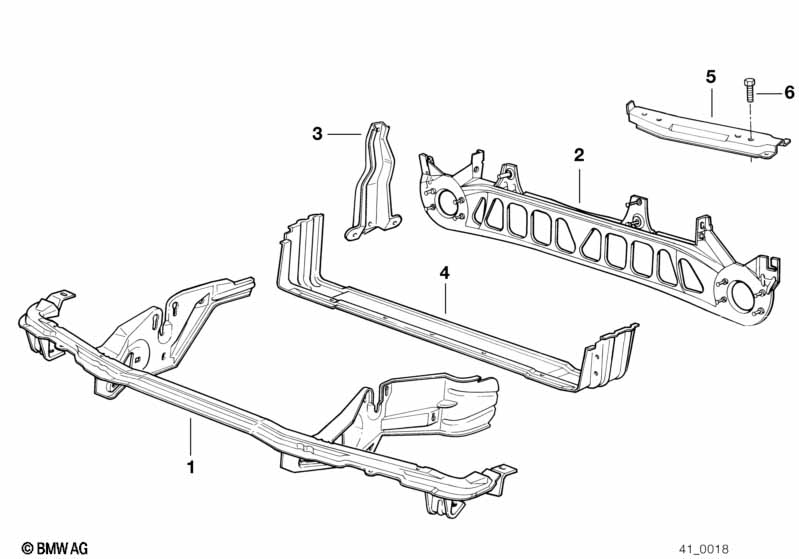

This Front body parts technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support bumper bracket front | 1 | 41118108299 | $317.14 | Shop at ECS Tuning | |||||
| 02 | Cross member | 1 | 41118123888 | $116.38 | Shop at ECS Tuning | |||||
| 03 | Support left | 1 | 41138108789 | $22.28 | Shop at ECS Tuning | |||||
| 03 | Support right | 1 | 41138108790 | $22.28 | Shop at ECS Tuning | |||||
| 04 | Cross member front | 1 | 41118108778 | $116.38 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bracket headlight left | 1 | 63121970129 | $45.40 | Shop at ECS Tuning | |||||
| 05 | Bracket headlight right | 1 | 63121970130 | $45.40 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST6,3X19-C-Z2 | X | 07119916967 | $0.29 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
