Splash wall parts for BMW 8 Series E31 840i (1996)

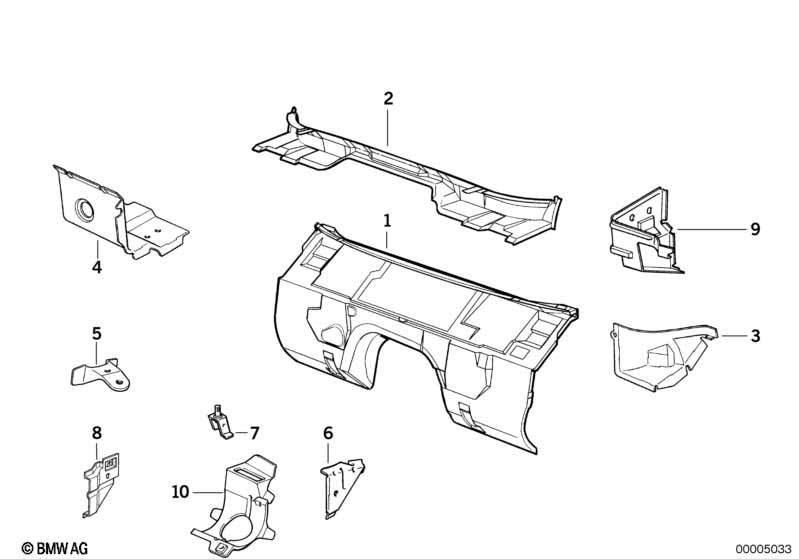

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splash wall | BASIS | 1 | 41138124697 | $730.98 | ENDED | Shop at ECS Tuning | |||
| 02 | Cross member | 1 | 06/1991 | 41118108787 | $285.63 | Shop at ECS Tuning | ||||
| 03 | Panel heater left | 1 | 41118108491 | $24.83 | ENDED | Shop at ECS Tuning | ||||
| 03 | Panel heater right | 1 | 41118108492 | $24.83 | ENDED | Shop at ECS Tuning | ||||
| 04 | Reinforcement left | 1 | 41118152507 | $26.33 | ENDED | Shop at ECS Tuning | ||||
| 04 | Reinforcement right | 1 | 41118152508 | $26.33 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bracket pressure accumulator upper | 1 | 41118108498 | $3.84 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket, oil carrier, top | 1 | 41148108777 | $4.06 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket pressure accumulator lower | 1 | 41118108499 | $5.03 | ENDED | Shop at ECS Tuning | ||||
| 08 | Support left | 1 | 41118108005 | $7.59 | ENDED | Shop at ECS Tuning | ||||
| 08 | Support right | 1 | 41118108006 | $6.36 | ENDED | Shop at ECS Tuning | ||||
| 09 | Partition left | 1 | 41138108489 | $31.25 | ENDED | Shop at ECS Tuning | ||||
| 09 | Partition right | 1 | 41138108490 | $34.04 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bracket activated Carbon container | 1 | 41148124972 | $10.38 | ENDED | Shop at ECS Tuning |
