Front side panel for BMW 8 Series E31 850Ci (1993)

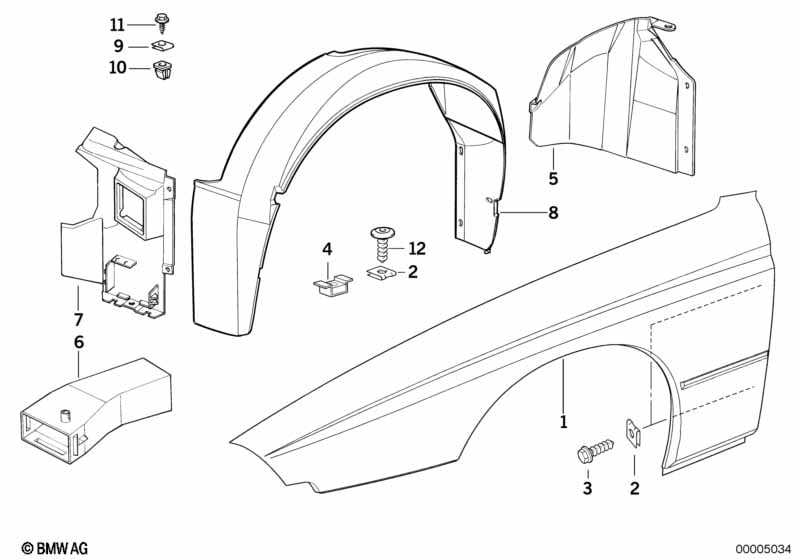

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side panel, front left | 1 | 41358108431 | $420.20 | Shop at ECS Tuning | |||||
| 01 | Side panel, front right | 1 | 41358108432 | $420.20 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO LATERAL TURN INDICATOR | ||||||||||
| 01 | Side panel, front left | 1 | 41358108847 | $420.20 | Shop at ECS Tuning | |||||
| 01 | Side panel, front right | 1 | 41358108848 | $420.20 | Shop at ECS Tuning | |||||
| 02 | Body nut | ST6,3-2-ZNS3 | X | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST6,3X13-F-Z2 | X | 07119916964 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 04 | Prestol-cage | ST6,3-ZNS | 4 | 07129901748 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Body nut | ST 6,3 - 9 | 4 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Covering left | 1 | 51718118991 | $18.05 | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 51718118992 | $18.05 | Shop at ECS Tuning | |||||
| 06 | Air duct, left | 1 | 51711970473 | $46.15 | Shop at ECS Tuning | |||||
| 06 | Air duct, right | 1 | 51711970474 | $46.15 | Shop at ECS Tuning | |||||
| 07 | Air duct, left | 1 | 51718108303 | $8.52 | Shop at ECS Tuning | |||||
| 07 | Air duct, right | 1 | 51718108304 | $8.52 | Shop at ECS Tuning | |||||
| 08 | Covering left | 1 | 51711970265 | $25.67 | Shop at ECS Tuning | |||||
| 08 | Covering right | 1 | 51711970266 | $25.67 | Shop at ECS Tuning | |||||
| 09 | Body nut | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Torx bolt | ISA ST6,3X14 | X | 07/1991 | 41009163211 | $0.43 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
