Body-side frame for BMW 8 Series E31 850Ci (1994)

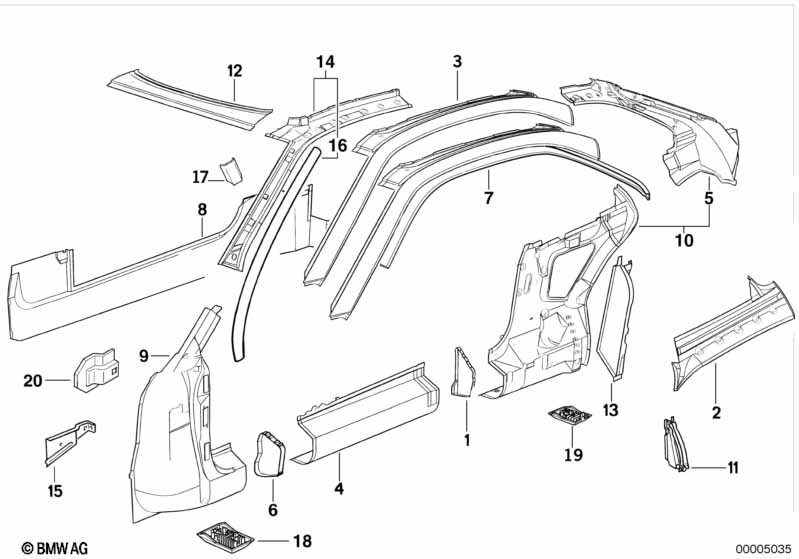

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Partition left | 1 | 41218108435 | $10.49 | Shop at ECS Tuning | |||||
| 01 | Partition right | 1 | 41218108436 | $10.71 | Shop at ECS Tuning | |||||
| 02 | Side member left | 1 | 41218108447 | $175.21 | Shop at ECS Tuning | |||||
| 02 | Side member right | 1 | 41218108448 | $203.32 | Shop at ECS Tuning | |||||
| 03 | Left outer roof frame panel | 1 | 41228108439 | $265.61 | Shop at ECS Tuning | |||||
| 03 | Right outer roof frame panel | 1 | 41228108440 | $265.61 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rocker panel left | 1 | 41218108443 | $208.44 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rocker panel right | 1 | 41218108444 | $208.44 | Shop at ECS Tuning | |||||
| 05 | Rear window frame left | 1 | 41328108449 | $482.11 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rear window frame right | 1 | 41328108450 | $199.76 | ENDED | Shop at ECS Tuning | ||||
| 06 | Protection plate | 1 | 41218118094 | $20.87 | Shop at ECS Tuning | |||||
| 07 | Roof frame left | 1 | 41228108437 | $472.01 | ENDED | Shop at ECS Tuning | ||||
| 07 | Right roof frame | 1 | 41228108438 | $444.17 | ENDED | Shop at ECS Tuning | ||||
| 08 | Left side member | 1 | 41118108433 | $212.04 | Shop at ECS Tuning | |||||
| 08 | Right side member | 1 | 41118108434 | $192.86 | Shop at ECS Tuning | |||||
| 09 | Left exterior column A | 1 | 41218108441 | $544.60 | Shop at ECS Tuning | |||||
| 09 | Column A exterior right | 1 | 41218108442 | $544.60 | Shop at ECS Tuning | |||||
| 10 | Lateral trim panel left | 1 | 41218108445 | $488.68 | ENDED | Shop at ECS Tuning | ||||
| 10 | Lateral trim panel right | 1 | 41218108446 | $488.68 | Shop at ECS Tuning | |||||
| 11 | Jack fixture rear | 1 | 41118118092 | $13.97 | ENDED | Shop at ECS Tuning | ||||
| 12 | Upper apron | 1 | 41328108455 | $108.79 | ENDED | Shop at ECS Tuning | ||||
| 13 | Column center left | 1 | 41211970627 | $175.81 | ENDED | Shop at ECS Tuning | ||||
| 13 | Column center right | 1 | 41211970628 | $175.81 | ENDED | Shop at ECS Tuning | ||||
| 14 | Left interior roof frame | 1 | 41221970625 | $163.21 | ENDED | Shop at ECS Tuning | ||||
| 14 | Right interior roof frame | 1 | 41221970626 | $171.86 | ENDED | Shop at ECS Tuning | ||||
| 15 | Holder wheelwell cover front left | 1 | 41118123253 | $10.62 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bracket covering wheel housing fr. right | 1 | 41118123254 | $10.62 | Shop at ECS Tuning | |||||
| 16 | Pipe left | 1 | 41328124845 | $292.39 | ENDED | Shop at ECS Tuning | ||||
| 16 | Pipe right | 1 | 41328124846 | $292.39 | ENDED | Shop at ECS Tuning | ||||
| 17 | Rear fuel filter bracket | 1 | 12/1993 | 41118186949 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 17 | Front fuel filter bracket | 1 | 12/1993 | 41118186953 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 18 | Support lifting platform | 2 | 51718108301 | $13.42 | Shop at ECS Tuning | |||||
| 19 | Support lifting platform | 2 | 51718108302 | $13.42 | Shop at ECS Tuning | |||||
| 20 | Fender bracket | 2 | 41211970024 | $3.46 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
