Floor panel trunk/wheel housing rear for BMW 8 Series E31 850Ci (1993)

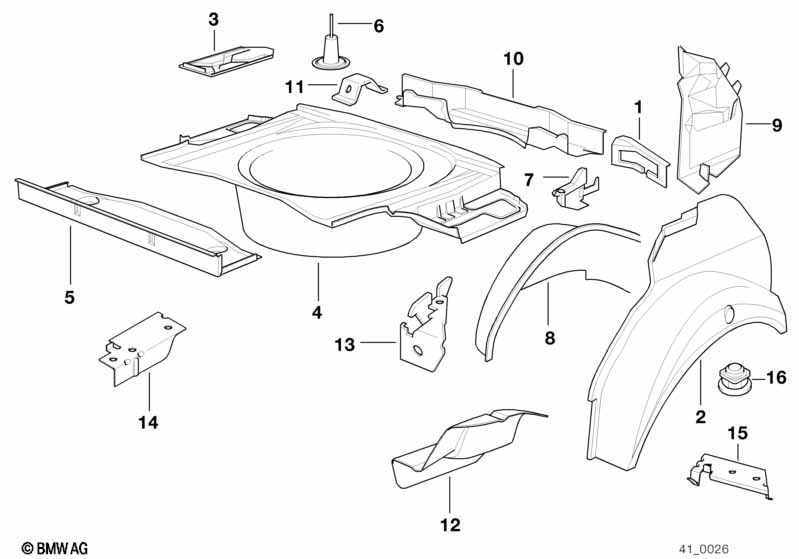

This Floor panel trunk/wheel housing rear technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel left | 1 | 41128108475 | $16.71 | Shop at ECS Tuning | |||||
| 01 | Panel right | 1 | 41128108476 | $16.71 | Shop at ECS Tuning | |||||
| 02 | Wheel arch outer rear left | 1 | 41148108479 | $170.62 | Shop at ECS Tuning | |||||
| 02 | Wheel arch outer rear right | 1 | 41148108480 | $170.62 | Shop at ECS Tuning | |||||
| 03 | Battery tray | 1 | 41128108482 | $36.82 | Shop at ECS Tuning | |||||
| 04 | Trunk floor | 1 | 41128108471 | $498.39 | Shop at ECS Tuning | |||||
| 05 | Front trunk floor | 1 | 41128108472 | $167.40 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket for spare wheel | 1 | 51718108473 | $12.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Threaded rod | M8X192 | 1 | 41118209460 | $3.62 | Shop at ECS Tuning | ||||
| For vehicles with AHK |
=Yes |
|||||||||
| 06 | Bracket for spare wheel | 1 | 09/1992 | 33341138421 | $24.83 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Threaded rod | M8X192 | 1 | 09/1992 | 41118209460 | $3.62 | Shop at ECS Tuning | |||
| 07 | Bracket exhaust, rear left | 1 | 41118108469 | $11.10 | Shop at ECS Tuning | |||||
| 07 | Bracket exhaust, rear right | 1 | 41118108470 | $11.10 | Shop at ECS Tuning | |||||
| 08 | Left rear inner wheelhouse | 1 | 41148108477 | $429.08 | Shop at ECS Tuning | |||||
| 08 | Right rear inner wheelhouse | 1 | 41148203778 | $434.22 | Shop at ECS Tuning | |||||
| 09 | Wheelhouse extension, left | 1 | 41148108487 | $40.05 | Shop at ECS Tuning | |||||
| 09 | Wheelhouse extension, right | 1 | 41148108488 | $40.05 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cross member | 1 | 41118108467 | $243.23 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 11 | Module bracket | 1 | 41128123882 | $4.63 | Shop at ECS Tuning | |||||
| For vehicles with CD Changer and AHK and DSC |
=Yes =Yes =Yes |
|||||||||
| 11 | Module bracket | 2 | 41128123882 | $4.63 | Shop at ECS Tuning | |||||
| 12 | Support for shock absorber left | 1 | 41148152997 | $18.63 | Shop at ECS Tuning | |||||
| 12 | Support for shock absorber right | 1 | 41148152998 | $18.63 | Shop at ECS Tuning | |||||
| For vehicles with foldable backrest |
=Yes |
|||||||||
| 13 | Bracket backrest outer left | 1 | 09/1992 | 41148134987 | $15.74 | Shop at ECS Tuning | ||||
| 13 | Bracket backrest outer right | 1 | 09/1992 | 41148134988 | $15.74 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) |
=Yes |
|||||||||
| 14 | Bracket acceleration sensor | 1 | 41148123874 | $2.96 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bracket acceleration sensor | 1 | 05/1995 | 41148124109 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 16 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 16 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
