Side panel/tail trim for BMW 8 Series E31 850Ci (1999)

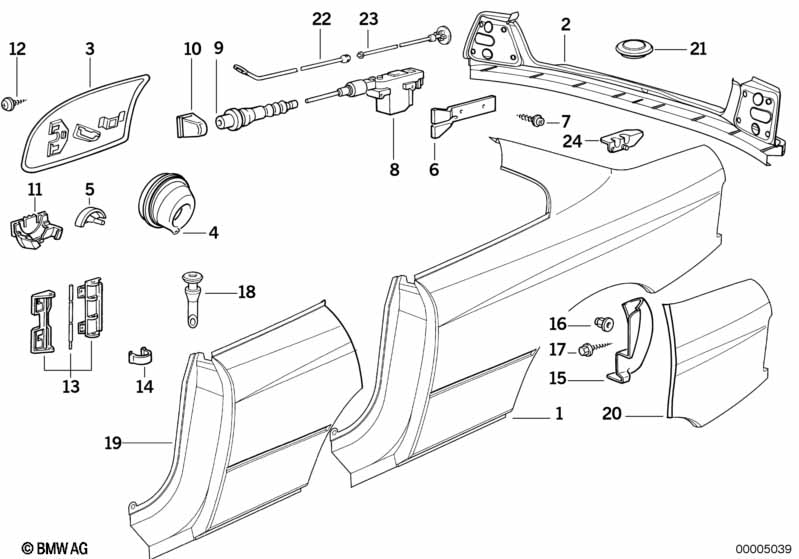

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41358108453 | $1077.65 | Shop at ECS Tuning | |||||
| 01 | Right rear side panel | 1 | 41358108454 | $1077.65 | Shop at ECS Tuning | |||||
| 02 | Tail panel rear | 1 | 41348118090 | $423.68 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 02 | Tail panel rear | 1 | 41348128224 | $374.98 | Shop at ECS Tuning | |||||
| 03 | Fill-in flap | 1 | 51178123812 | $58.49 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rubber cover | 1 | 51711928172 | $8.68 | Shop at ECS Tuning | |||||
| 05 | Stop buffer | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 51251970928 | $4.67 | ENDED | Shop at ECS Tuning | ||||
| 07 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 09/1991 | 07149113701 | $0.38 | Shop at ECS Tuning | |||
| 08 | Actuator | 1 | 67111392594 | $74.42 | Shop at ECS Tuning | |||||
| 09 | Sleeve | 1 | 51258108403 | $8.12 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 11 | Support filler cap | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 12 | Screw | ST 4.8X13 | 2 | 07149156623 | $0.73 | Shop at ECS Tuning | ||||
| 13 | Hinge, gas cap | 1 | 51171970450 | $11.62 | Shop at ECS Tuning | |||||
| 14 | Spring | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 15 | Covering left | 1 | 51711970267 | $97.73 | Shop at ECS Tuning | |||||
| 16 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST4,8X16-ZNS3 | 3 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Hose | 1 | 51738118649 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 19 | Section of rear left fender | 1 | 41358128365 | Shop at ECS Tuning | ||||||
| 19 | Section of rear right fender | 1 | 41358128366 | $697.50 | Shop at ECS Tuning | |||||
| 20 | Section of rear left fender | 1 | 41358128367 | $591.48 | ENDED | Shop at ECS Tuning | ||||
| 20 | Section of rear right fender | 1 | 41358128368 | $426.76 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
