Roof for BMW 8 Series E31 850CSi (1996)

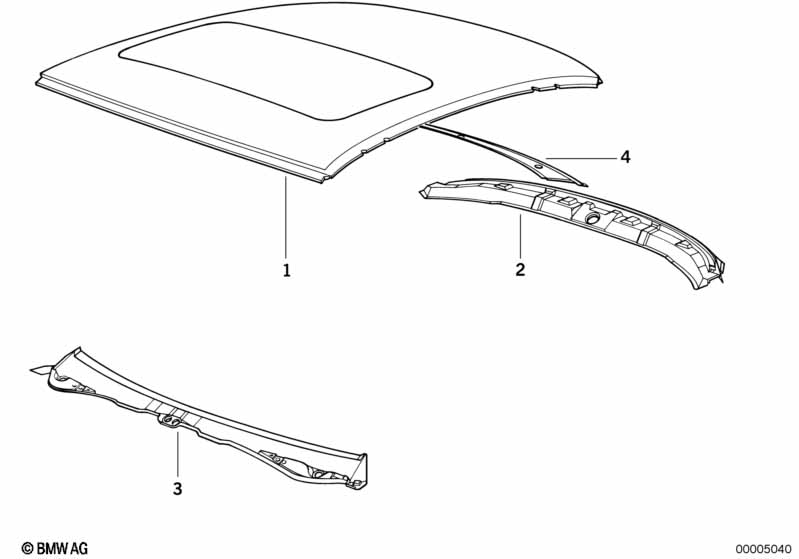

This Roof technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof covering lifting-sliding roof | 1 | 41318108342 | $1180.03 | Shop at ECS Tuning | |||||
| 01 | Roof cover | 1 | 41318108457 | $1038.46 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear window frame bottom part | 1 | 41328108483 | $108.79 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lower apron | 1 | 41328108456 | $436.36 | Shop at ECS Tuning | |||||
| 04 | Rear window frame upper part | 1 | 41328108458 | $117.18 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850CSi Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the 8 Series E31 850CSi produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Roof covering lifting-sliding roof (Part #41318108342).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the 8 Series E31 850CSi produced during 1996. These technical specifications ensure that parts like the Roof covering lifting-sliding roof (41318108342) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the 8 Series E31 850CSi, you can identify the Roof covering lifting-sliding roof by locating its position on the schematic, which then links to the official BMW part number 41318108342 for the Bodywork section.
