Door lock front for BMW 8 Series E31 840i (1996)

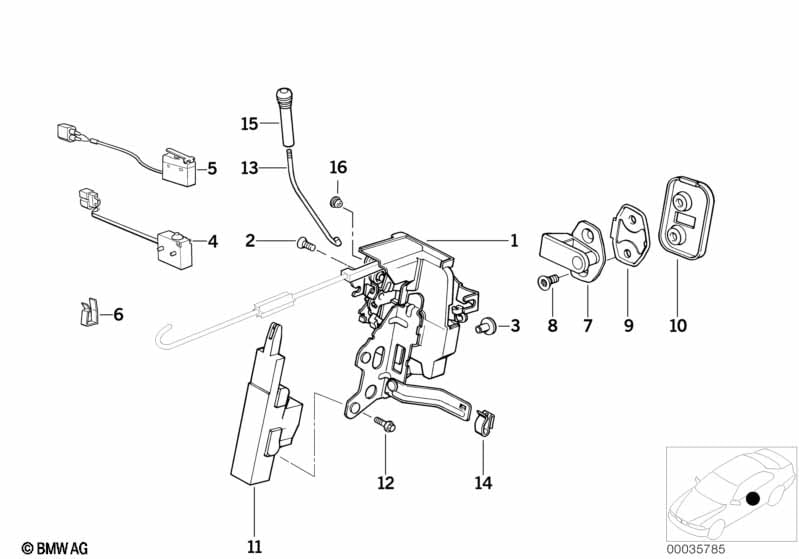

This Door lock front technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lock front left | 1 | 51211970045 | $265.01 | Shop at ECS Tuning | |||||
| 01 | Door lock front right | 1 | 51211970046 | $265.01 | Shop at ECS Tuning | |||||
| 02 | Torx-countersunk head screw | ISA M6X12 | 2 | 51211950266 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Torx-bolt with washer | M6X12 | 2 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| 04 | Micro switch window lowering | 1 | 61311392192 | $32.70 | +core | Shop at ECS Tuning | ||||
| 05 | Micro switch door lock | 1 | 61311392193 | $37.35 | +core | Shop at ECS Tuning | ||||
| 06 | Microswitch clip | 2 | 61311374027 | $0.30 | Shop at ECS Tuning | |||||
| 07 | Latch Striker | 2 | 09/1992 | 51218152238 | $34.75 | ENDED | Shop at ECS Tuning | |||
| 08 | Torx-countersunk head screw | M8X18 | 4 | 51211928850 | $0.52 | Shop at ECS Tuning | ||||
| 09 | Striker plate gasket | 2 | 51218118627 | $2.50 | Shop at ECS Tuning | |||||
| 10 | Lock plate | M8 | 2 | 51211960194 | $2.05 | Shop at ECS Tuning | ||||
| 11 | Actuator f front door | 2 | 67118354213 | $101.80 | ENDED | Shop at ECS Tuning | ||||
| 12 | Torx-bolt for plastic material | L=10MM | 2 | 51268354462 | $0.39 | Shop at ECS Tuning | ||||
| 13 | Lever left | 1 | 51218108151 | $1.13 | Shop at ECS Tuning | |||||
| 13 | Lever right | 1 | 51218108152 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 14 | Holder | 2 | 61131381436 | $0.47 | Shop at ECS Tuning | |||||
| 15 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 16 | Grommet | 4 | 52208238999 | $0.40 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
