Door weatherstrip front for BMW 8 Series E31 850Ci (1999)

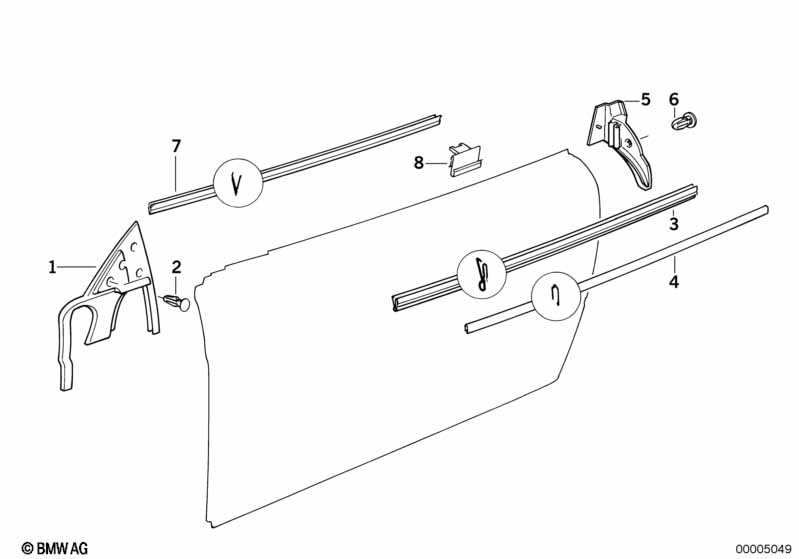

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket left | 1 | 51321970785 | $75.48 | Shop at ECS Tuning | |||||
| 01 | Gasket right | 1 | 51321970786 | $75.48 | Shop at ECS Tuning | |||||
| 02 | Plug | D=4,00 MM | 2 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 03 | Door weather strip outer left | 1 | 51211970063 | $33.13 | Shop at ECS Tuning | |||||
| 03 | Door weather strip outer right | 1 | 51211970064 | $33.13 | Shop at ECS Tuning | |||||
| 04 | Cover panel outer left | 1 | 51211970351 | $43.04 | Shop at ECS Tuning | |||||
| 04 | Cover panel outer right | 1 | 51211970352 | $43.04 | Shop at ECS Tuning | |||||
| 05 | Covering door front left | 1 | 51321970079 | $40.90 | Shop at ECS Tuning | |||||
| 05 | Covering door front right | 1 | 51321970080 | $40.90 | Shop at ECS Tuning | |||||
| 06 | Clamp | 5 | 51221856946 | $0.44 | Shop at ECS Tuning | |||||
| 07 | Door weather strip inner left | 1 | 51211970061 | $38.22 | Shop at ECS Tuning | |||||
| 07 | Door weather strip inner right | 1 | 51211970062 | $38.22 | Shop at ECS Tuning | |||||
| 08 | Clamp | 5 | 51211970530 | $1.69 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Door weatherstrip front?
- This technical diagram illustrates the Door weatherstrip front within the Bodywork group for the 8 Series E31 850Ci produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Gasket left (Part #51321970785).
- Which models use the hardware listed in this Door weatherstrip front?
- The hardware and components featured in the Door weatherstrip front are specific to the 8 Series E31 850Ci produced during 1999. These technical specifications ensure that parts like the Gasket left (51321970785) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door weatherstrip front assembly?
- Each item in the Door weatherstrip front corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Gasket left by locating its position on the schematic, which then links to the official BMW part number 51321970785 for the Bodywork section.
