Front panel for BMW 7 Series E23 728 (1979)

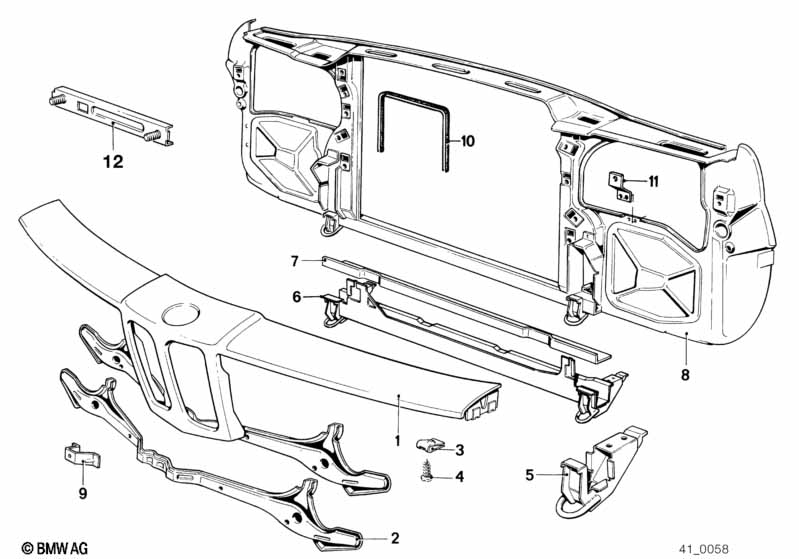

This Front panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel | 1 | 09/1982 | 41331852331 | $394.67 | Shop at ECS Tuning | ||||
| 02 | Support | 1 | 09/1982 | 41331852332 | $55.52 | ENDED | Shop at ECS Tuning | |||
| 03 | Body nut | B6,5 | X | 09/1982 | 32412482060 | $0.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Sheet metal screw | B6,5X16 | X | 09/1982 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | ||
| 05 | Towing suspension front | 2 | 09/1982 | 41111864937 | $19.34 | Shop at ECS Tuning | ||||
| 06 | Cross member front | 1 | 09/1982 | 41111858058 | $64.64 | Shop at ECS Tuning | ||||
| 07 | Covering plate | 1 | 09/1982 | 41111860053 | $24.17 | ENDED | Shop at ECS Tuning | |||
| 08 | Front panel | BASIS | 1 | 09/1982 | 41131915977 | $645.94 | ENDED | Shop at ECS Tuning | ||
| 11 | Headlight bracket | 2 | 09/1982 | 41131900140 | $2.62 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Front panel?
- This technical diagram illustrates the Front panel within the Bodywork group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Front panel (Part #41331852331).
- Which models use the hardware listed in this Front panel?
- The hardware and components featured in the Front panel are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Front panel (41331852331) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front panel assembly?
- Each item in the Front panel corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Front panel by locating its position on the schematic, which then links to the official BMW part number 41331852331 for the Bodywork section.
