Wheelhouse/engine support for BMW 3 Series E21 320 (1979)

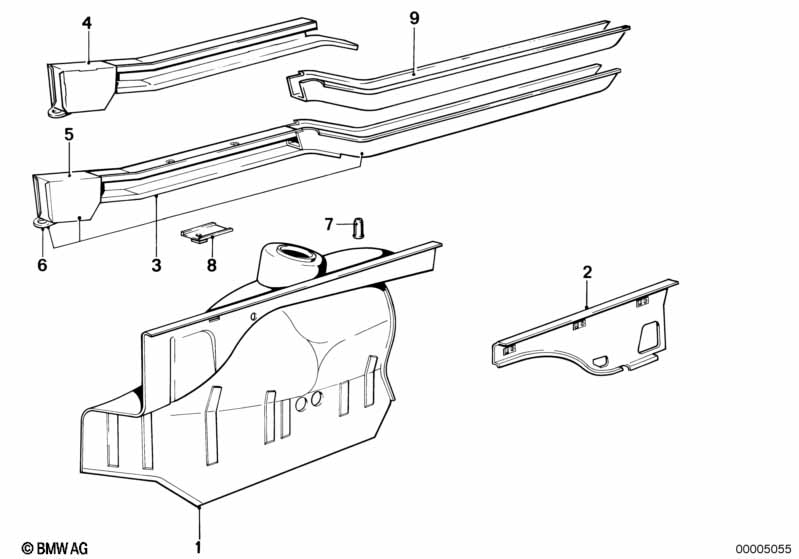

This Wheelhouse/engine support technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FRONT BODY PARTS | ||||||||||
| 01 | Front left wheelhouse | BASIS | 1 | 41141846603 | $453.10 | ENDED | Shop at ECS Tuning | |||
| 01 | Wheelhousing, front right | BASIS | 1 | 41141846604 | $453.10 | Shop at ECS Tuning | ||||
| 02 | Wheel housing strut, front left | 1 | 41111846649 | $166.28 | Shop at ECS Tuning | |||||
| 02 | Wheel housing strut, front right | 1 | 41111846650 | $166.28 | Shop at ECS Tuning | |||||
| 03 | Engine support, left | 1 | 41111836601 | $252.22 | ENDED | Shop at ECS Tuning | ||||
| 03 | Engine support right | 1 | 41111836602 | $252.22 | ENDED | Shop at ECS Tuning | ||||
| 04 | Engine support, left | 1 | 41111848739 | $199.12 | ENDED | Shop at ECS Tuning | ||||
| 04 | Engine support right | 1 | 41111848740 | $169.63 | ENDED | Shop at ECS Tuning | ||||
| 05 | Console left | 1 | 41111849925 | Shop at ECS Tuning | ||||||
| 05 | Console right | 1 | 41111849926 | $27.34 | ENDED | Shop at ECS Tuning | ||||
| 06 | Towing bracket | 2 | 41111848737 | $4.91 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bush | 3 | 41121877025 | $0.20 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket earth cable | 1 | 41141856331 | $6.37 | ENDED | Shop at ECS Tuning | ||||
| 09 | Engine support, left | 1 | 41111914393 | $101.41 | ENDED | Shop at ECS Tuning | ||||
| 09 | Engine support right | 1 | 41111914394 | $88.72 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Wheelhouse/engine support?
- This technical diagram illustrates the Wheelhouse/engine support within the Bodywork group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Front left wheelhouse (Part #41141846603).
- Which models use the hardware listed in this Wheelhouse/engine support?
- The hardware and components featured in the Wheelhouse/engine support are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Front left wheelhouse (41141846603) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheelhouse/engine support assembly?
- Each item in the Wheelhouse/engine support corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Front left wheelhouse by locating its position on the schematic, which then links to the official BMW part number 41141846603 for the Bodywork section.
