Front wheelhouse for BMW 5 Series E12 525 (1976)

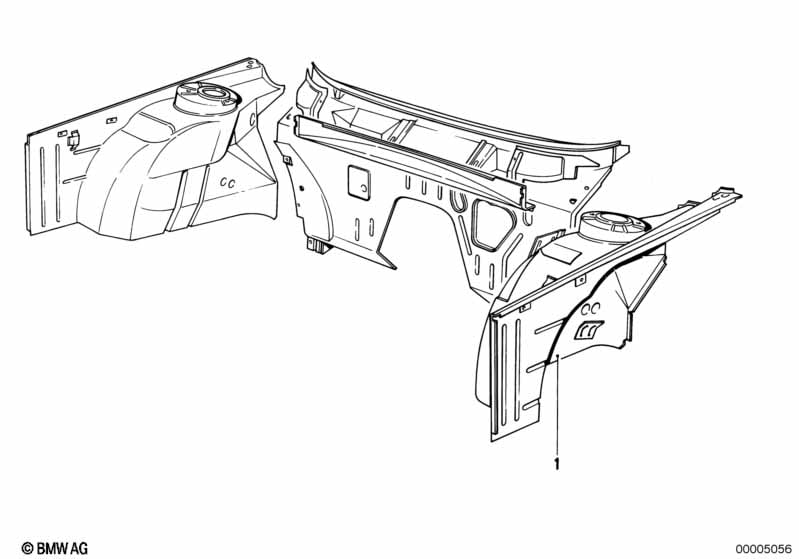

This Front wheelhouse technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheelhousing, front right | BASIS | 1 | 08/1978 | 41141854492 | ENDED | Shop at ECS Tuning | |||
| 01 | Front left wheelhouse | BASIS | 1 | 08/1976 | 08/1978 | 41141858739 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Front wheelhouse?
- This technical diagram illustrates the Front wheelhouse within the Bodywork group for the 5 Series E12 525 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Wheelhousing, front right (Part #41141854492).
- Which models use the hardware listed in this Front wheelhouse?
- The hardware and components featured in the Front wheelhouse are specific to the 5 Series E12 525 produced during 1976. These technical specifications ensure that parts like the Wheelhousing, front right (41141854492) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front wheelhouse assembly?
- Each item in the Front wheelhouse corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Wheelhousing, front right by locating its position on the schematic, which then links to the official BMW part number 41141854492 for the Bodywork section.
