Front body-engine support for BMW 5 Series E12 528 (1977)

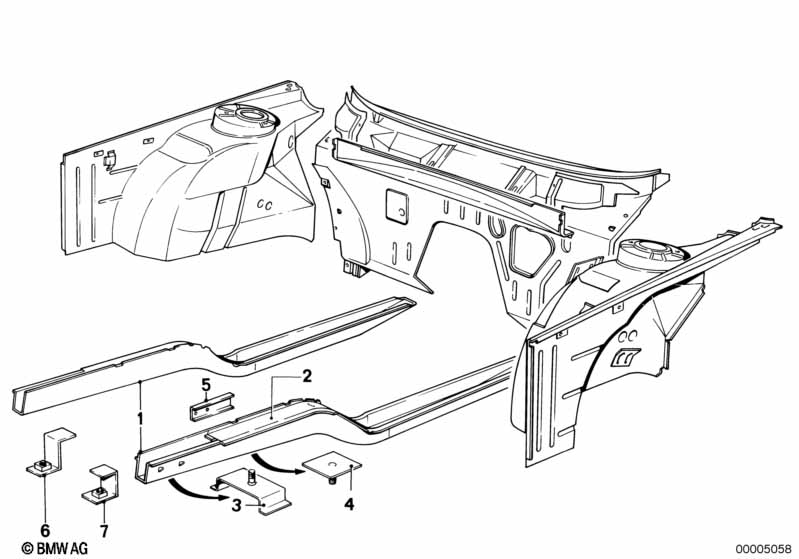

This Front body-engine support technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support without cover plate left | 1 | 41111847715 | $255.56 | ENDED | Shop at ECS Tuning | ||||
| 01 | Engine support without cover plate right | 1 | 41111847716 | $255.56 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering panel for engine beam left | 1 | 41111847717 | $8.45 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering panel for engine beam right | 1 | 41111847718 | $18.64 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Front body-engine support?
- This technical diagram illustrates the Front body-engine support within the Bodywork group for the 5 Series E12 528 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Engine support without cover plate left (Part #41111847715).
- Which models use the hardware listed in this Front body-engine support?
- The hardware and components featured in the Front body-engine support are specific to the 5 Series E12 528 produced during 1977. These technical specifications ensure that parts like the Engine support without cover plate left (41111847715) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body-engine support assembly?
- Each item in the Front body-engine support corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Engine support without cover plate left by locating its position on the schematic, which then links to the official BMW part number 41111847715 for the Bodywork section.
