Front body bracket for BMW 3 Series E21 320i (1979)

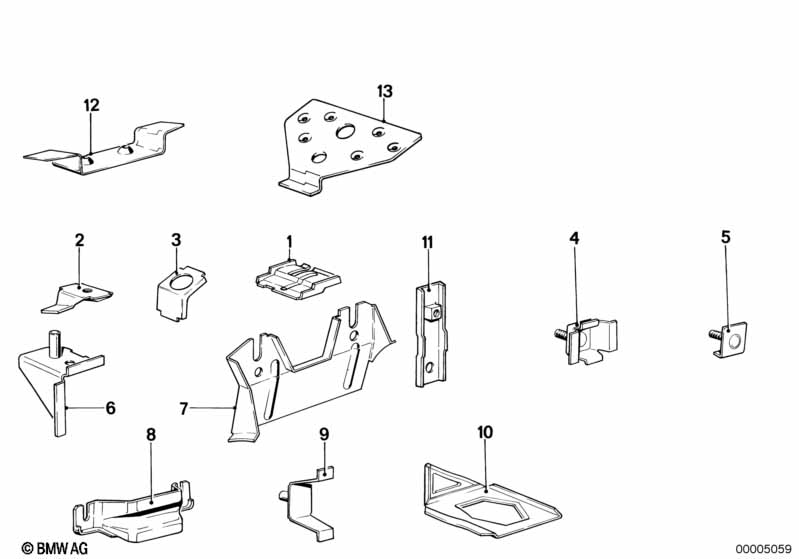

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support fluid container windshield wash | 1 | 41141855992 | $4.74 | ENDED | Shop at ECS Tuning | ||||
| 02 | Support fluid container windshield wash | 1 | 41141860886 | ENDED | Shop at ECS Tuning | |||||
| 03 | Bracket wiring brake wear warning | 1 | 41141868899 | $0.93 | ENDED | Shop at ECS Tuning | ||||
| 04 | Support engine hood stay | 2 | 41141846609 | $6.38 | ENDED | Shop at ECS Tuning | ||||
| 05 | Ignition coil support | 1 | 41141852687 | $4.69 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support air cleaner | 1 | 09/1979 | 41141860599 | $8.48 | ENDED | Shop at ECS Tuning | |||
| 09 | Brake pipe bracket | 1 | 41111860499 | $3.07 | Shop at ECS Tuning | |||||
| 10 | Battery tray | 1 | 41111846621 | $40.02 | ENDED | Shop at ECS Tuning | ||||
| 11 | Support shock absorber front | 2 | 41141854869 | $6.03 | ENDED | Shop at ECS Tuning | ||||
| 12 | Bracket Lambda control unit | 1 | 41131879516 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 13 | Bracket control unit transistor ignition | 1 | 41141870075 | $9.60 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Front body bracket?
- This technical diagram illustrates the Front body bracket within the Bodywork group for the 3 Series E21 320i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Support fluid container windshield wash (Part #41141855992).
- Which models use the hardware listed in this Front body bracket?
- The hardware and components featured in the Front body bracket are specific to the 3 Series E21 320i produced during 1979. These technical specifications ensure that parts like the Support fluid container windshield wash (41141855992) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body bracket assembly?
- Each item in the Front body bracket corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Support fluid container windshield wash by locating its position on the schematic, which then links to the official BMW part number 41141855992 for the Bodywork section.
