Front body bracket for BMW 5 Series E12 528 (1977)

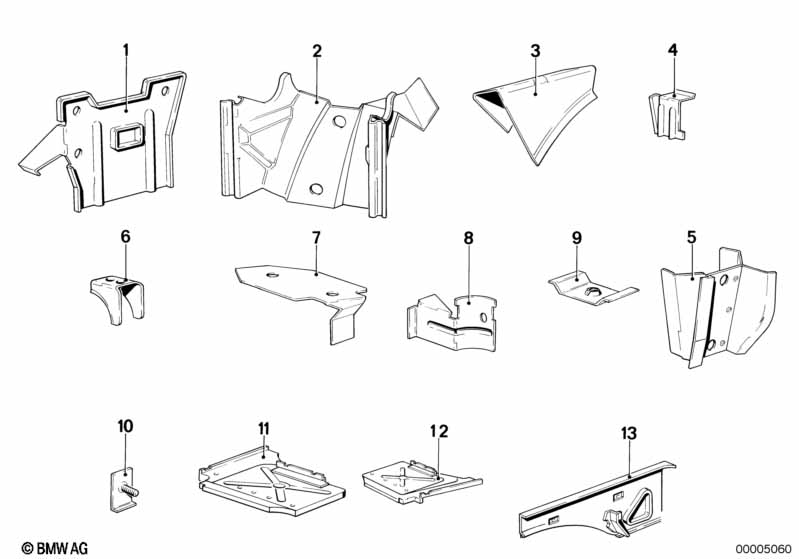

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Support fluid container windshield wash | 1 | 08/1978 | 41141820256 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder, heat protection sheet | 3 | 41111816760 | $12.95 | Shop at ECS Tuning | |||||
| 10 | Ignition coil support | 1 | 41141852687 | $4.69 | ENDED | Shop at ECS Tuning | ||||
| 11 | Covering plate left | 1 | 41111818935 | $46.87 | ENDED | Shop at ECS Tuning | ||||
| 12 | Covering plate right | 1 | 41111860152 | $33.20 | ENDED | Shop at ECS Tuning | ||||
| 13 | Wheel housing strut, front left | 1 | 41111819029 | $31.25 | ENDED | Shop at ECS Tuning | ||||
| 13 | Wheel housing strut, front right | 1 | 41111819030 | $31.25 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
