Rear spoiler M-technik for BMW 3 Series E30 325e (1987)

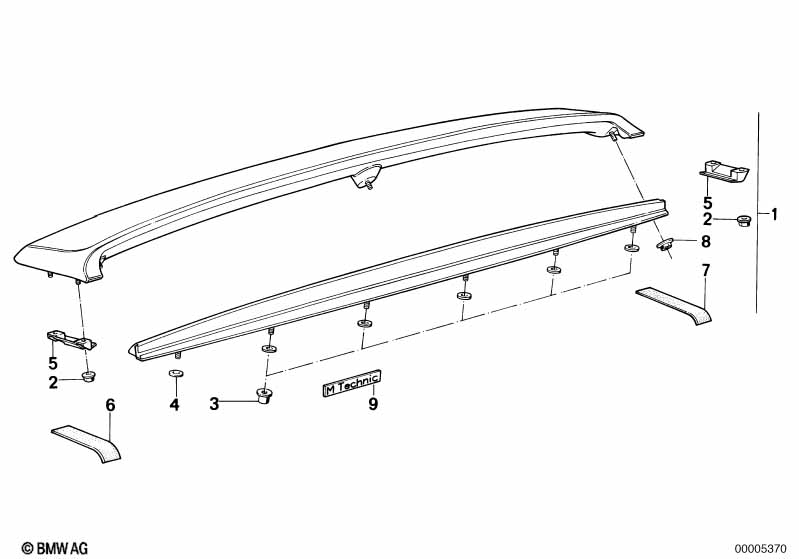

This Rear spoiler M-technik technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set rear spoiler | M TECHNIC | 1 | 09/1987 | 51712239717 | $960.58 | ENDED, ABE 9786248 | Shop at ECS Tuning | ||
| ONLY IN CONJUNCTION WITH M TECHNIC INSTALLING SET SPOILER FRONT |
||||||||||
| 02 | Hex nut with plate | M5-8-ZNNIV SI | 4 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 03 | Cap nut | M5 | 6 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Washer-gasket | 6 | 51711916637 | $0.32 | Shop at ECS Tuning | |||||
| 05 | Holder | 2 | 51712239718 | $1.30 | Shop at ECS Tuning | |||||
| 06 | Foil | 1 | 51712239839 | $12.06 | Shop at ECS Tuning | |||||
| 07 | Foil | 2 | 51712239839 | $12.06 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M5-8-ZNNIV SI | 3 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Stick-on label | M TECHNIC | 1 | 51111919154 | $10.66 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
