Single components for trunk lid for BMW 5 Series E34 540i (1995)

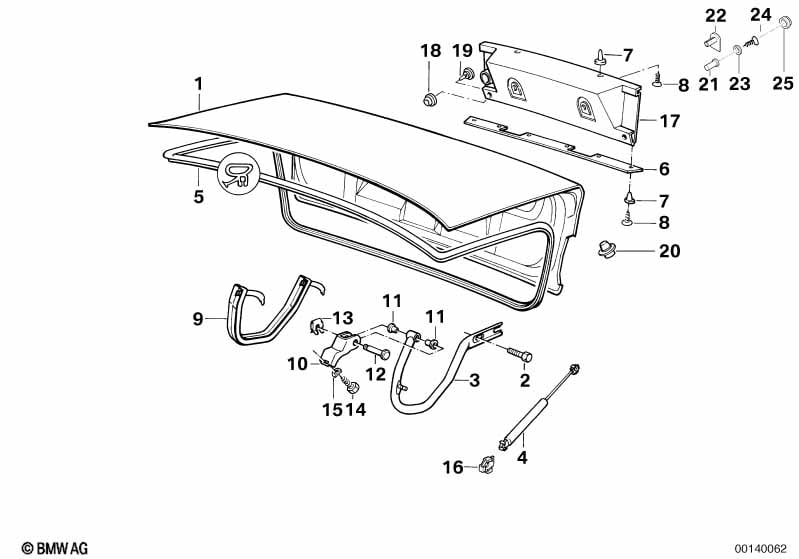

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41621934179 | $602.64 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X16-Z3-2 | 8 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Left trunk lid hinge | 1 | 10/1989 | 41628117857 | $54.07 | Shop at ECS Tuning | ||||
| 03 | Right trunk lid hinge | 1 | 10/1989 | 41628117858 | $54.07 | Shop at ECS Tuning | ||||
| 04 | Gas pressurized spring | 410N | 2 | 51248110327 | $38.42 | Shop at ECS Tuning | ||||
| For vehicles with M technic rear spoiler |
=Yes |
|||||||||
| 04 | Gas pressurized spring | 480N | 2 | 51242231663 | $49.73 | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 51718110499 | Shop at ECS Tuning | ||||||
| 06 | Cover | 1 | 51131973227 | $34.13 | ENDED | Shop at ECS Tuning | ||||
| 07 | Grommet | 12X6,3 | X | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Recessed oval head sheet-metal screw | ST2,9X13 | X | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 09 | Cover | SCHWARZ | 1 | 51491973695 | $5.11 | Shop at ECS Tuning | ||||
| 10 | Bracke trunk lid-hinge | 2 | 41621944789 | $3.30 | Shop at ECS Tuning | |||||
| 11 | Bush | 4 | 41621944338 | $0.23 | Shop at ECS Tuning | |||||
| 12 | Bolt | D=8,0 | 2 | 41621944337 | $10.61 | ENDED | Shop at ECS Tuning | |||
| 13 | Circlip | B8 | 2 | 07129904492 | Shop at ECS Tuning | |||||
| 14 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Positioning plate | 2 | 41621978879 | $0.56 | ENDED | Shop at ECS Tuning | ||||
| 16 | Securing plate | 4 | 51231908430 | $1.72 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 20 | Stop buffer | 2 | 51248148859 | $0.47 | Shop at ECS Tuning | |||||
| 21 | Plug-in nut | 2 | 51181966959 | $0.26 | Shop at ECS Tuning | |||||
| 23 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 24 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 24 | Fillister head self-tapping screw | ST4,8X13 | 2 | 07149147132 | Shop at ECS Tuning | |||||
| 25 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 25 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 25 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
