Body skeleton for BMW 3 Series E36 318is (1995)

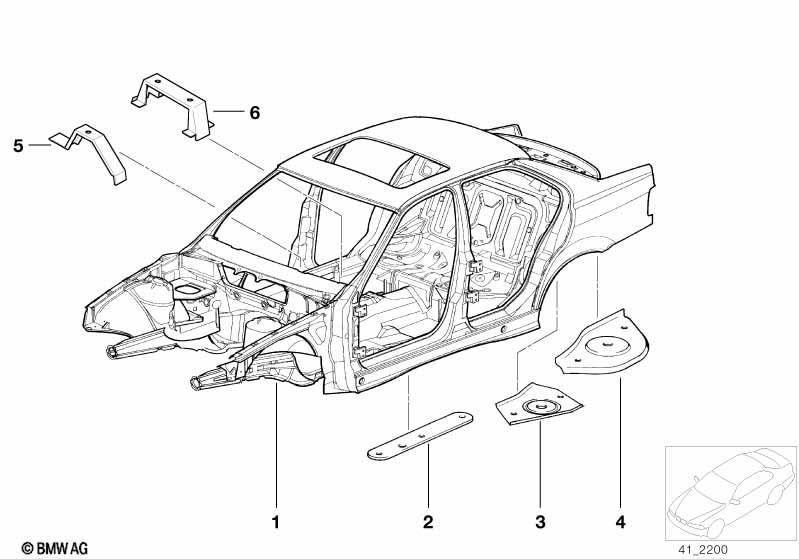

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 09/1992 | 41008224674 | ENDED | Shop at ECS Tuning | |||
| 01 | Body skeleton | BASIS | 1 | 09/1992 | 41008224676 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 09/1992 | 41008224760 | ENDED | Shop at ECS Tuning | |||
| 01 | Body skeleton | BASIS | 1 | 09/1992 | 41008224762 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the 3 Series E36 318is produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Body skeleton sliding lifting roof (Part #41008224674).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the 3 Series E36 318is produced during 1995. These technical specifications ensure that parts like the Body skeleton sliding lifting roof (41008224674) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Body skeleton sliding lifting roof by locating its position on the schematic, which then links to the official BMW part number 41008224674 for the Bodywork section.
