Roof for BMW 3 Series E36 325tds (1998)

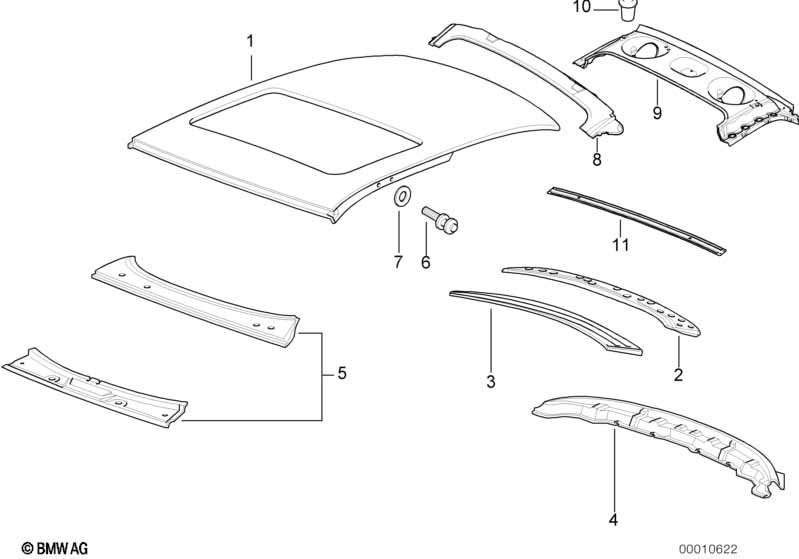

This Roof technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof covering lifting-sliding roof | 1 | 41311977080 | $700.73 | Shop at ECS Tuning | |||||
| 01 | Roof cover | 1 | 41311977870 | $559.19 | Shop at ECS Tuning | |||||
| 02 | Rear window frame upper part | 1 | 41328119759 | $33.98 | Shop at ECS Tuning | |||||
| 03 | Roof bow | 1 | 41321977910 | $43.41 | Shop at ECS Tuning | |||||
| 04 | Rear window frame bottom part | 1 | 41328119734 | $60.29 | Shop at ECS Tuning | |||||
| FOR VEHICLES WITH AND WITHOUT SLIDING LIFTING ROOF |
||||||||||
| 05 | Upper apron | 1 | 41328164938 | $65.22 | Shop at ECS Tuning | |||||
| 06 | Torx-bolt with washer | ISA M8X17 | 8 | 41311977772 | $1.43 | Shop at ECS Tuning | ||||
| 07 | Zinc foil | D=18MM | 8 | 41138153250 | $0.44 | Shop at ECS Tuning | ||||
