Front wheelhouse for BMW 3 Series E36 318ti (2000)

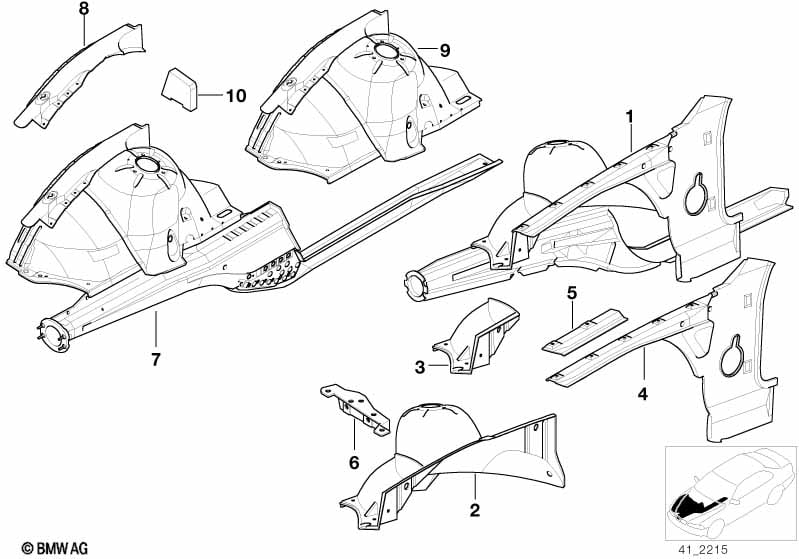

This Front wheelhouse technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left wheelhouse | BASIS | 1 | 09/1994 | 41148202835 | $673.44 | ENDED | Shop at ECS Tuning | ||
| 01 | Wheelhousing, front right | BASIS | 1 | 09/1994 | 41148202836 | $673.44 | Shop at ECS Tuning | |||
| 02 | Section of left front wheel housing | BASIS | 1 | 41148122543 | $336.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Section of right front wheel housing | BASIS | 1 | 41148122544 | $336.75 | Shop at ECS Tuning | ||||
| 03 | Section of left front wheel housing | BASIS | 1 | 41148119783 | $141.44 | Shop at ECS Tuning | ||||
| 03 | Section of right front wheel housing | BASIS | 1 | 41148119784 | $141.44 | Shop at ECS Tuning | ||||
| 04 | Wheel housing strut, front left | 1 | 41118122549 | $130.19 | Shop at ECS Tuning | |||||
| 04 | Wheel housing strut, front right | 1 | 41118122550 | $130.19 | ENDED | Shop at ECS Tuning | ||||
| 05 | Section of left reinforcement | 1 | 41118119787 | $68.97 | Shop at ECS Tuning | |||||
| 05 | Section of right reinforcement | 1 | 41118119788 | $68.97 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket f left front lateral bumper | 1 | 41148122553 | $18.63 | Shop at ECS Tuning | |||||
| 06 | Bracket f right front lateral bumper | 1 | 41148122554 | $18.63 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
