Splash wall parts for BMW 3 Series E36 318is (1995)

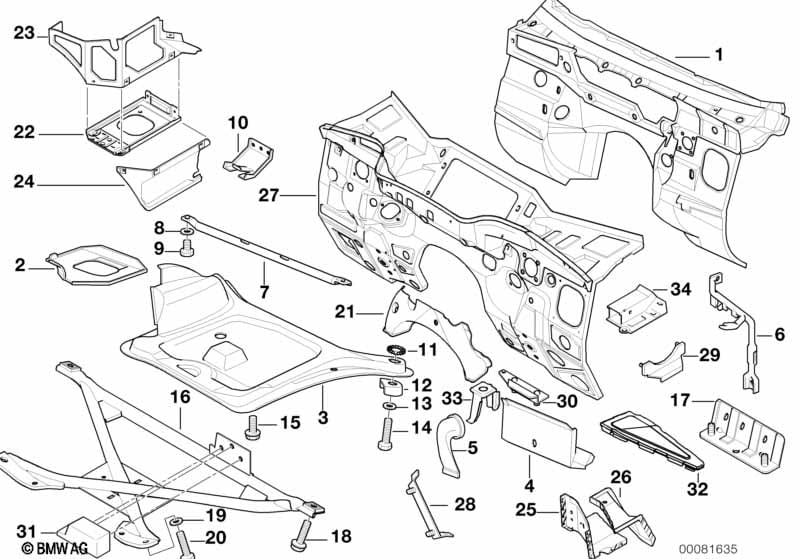

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splash wall | BASIS | 1 | 41131960067 | $596.73 | Shop at ECS Tuning | ||||
| 02 | Battery tray/heat container | 1 | 09/1994 | 41118189605 | $22.97 | Shop at ECS Tuning | ||||
| 04 | Connection pcs, wheel house/entrance,lft | 1 | 41118122561 | $32.81 | Shop at ECS Tuning | |||||
| 04 | Connection pcs,wheel house/entrance,rght | 1 | 41118122562 | $32.81 | Shop at ECS Tuning | |||||
| 05 | Water hose | D=56X26 | 2 | 09/1995 | 51738203093 | $5.09 | Shop at ECS Tuning | |||
| 06 | Supporting tube | 1 | 51718158257 | $89.99 | ENDED | Shop at ECS Tuning | ||||
| 07 | Crossover | 1 | 51718135880 | $49.58 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M10X35-Z1-10.9 | 2 | 01/1994 | 33306760652 | $0.88 | Shop at ECS Tuning | |||
| 30 | Fuel valve bracket | 1 | 41128202569 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Splash wall parts?
- This technical diagram illustrates the Splash wall parts within the Bodywork group for the 3 Series E36 318is produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Splash wall (Part #41131960067).
- Which models use the hardware listed in this Splash wall parts?
- The hardware and components featured in the Splash wall parts are specific to the 3 Series E36 318is produced during 1995. These technical specifications ensure that parts like the Splash wall (41131960067) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Splash wall parts assembly?
- Each item in the Splash wall parts corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Splash wall by locating its position on the schematic, which then links to the official BMW part number 41131960067 for the Bodywork section.
